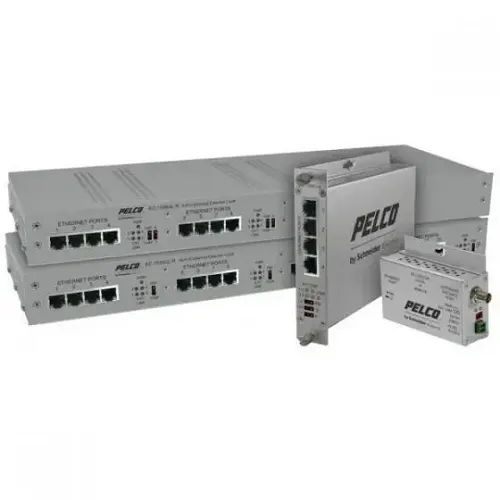

1-Port Remote Coaxial Extender Ethernet Connect EC-3001CRPOE-M

Also Known As:

1-Port Extends Ethernet, Remote Ethernet Connect, Coaxial Extender

About:

This eliminates the need for midspans or PoE-enabled Ethernet switches to provide a fully 802.3at compatible application. Designed to be a cost-effective, advanced-use product, it provides maximum flexibility in these applications without any programming. It is used to extend Ethernet over copper (EoC). Extends up to 16 channels of 10/100 Mbps Ethernet with PoE power injection and pass-through PoE over coaxial cable. Extends up to 16 channels of 10/100 Mbps Ethernet with PoE power injection. With the ability to connect directly to a PoE switch or the ability to generate PoE power with a 48 V input to either the local or remote ends, this units provide the ultimate flexibility for extending a powered device (PD) over long distance copper. A complete set includes both a local and a remote module. Remote modules are small unit size in either a one- or four-channel configuration.

Features:

• Extends Ethernet up to 1,524 m (5,000 ft) at 10 Mbps or 549 m (1,800 ft) at 100 Mbps over Coaxial Cable
• Extended Temperature Operation from –40° to 75°C (–40° to 167°F)
• Extended Pass-Through PoE Meets the IEEE802.3at Standard for Power over Ethernet
• Full 10/100 Mbps Bandwidth
• Supports Multicast, Unicast and Jumbo Frame
• Symmetric Bandwidth Provides Consistent Upload and Download with Virtually Zero Packet Loss over the Total Usable Distance
• Type Tested to RFC-2544 TCP/IP Network Bandwidth Packet Transmission Standards
• User-Selectable Data Rate for Maximum Bandwidth and Transmission Distance Utilization
• Complies with all Major IEEE Standards and RFC Network Protocols for UDP, TCP/IP, HTTP/HTTPs
• Tested and Certified by an Independent Laboratory for Full Compliance with the Environmental Requirements (Ambient Operating Temperature, Mechanical Shock, Vibration, Humidity with Condensation, High-Line/Low-Line Voltage Conditions and Transient Voltage Protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment
• LED Status Indicators Confirm Operating Status
• Designed and Manufactured in the USA

Specifications:

• Product Type: Ethernet Connect
• Part Number : 13VDIR7.5-50
