Product Details
＋
DESCRIPTION

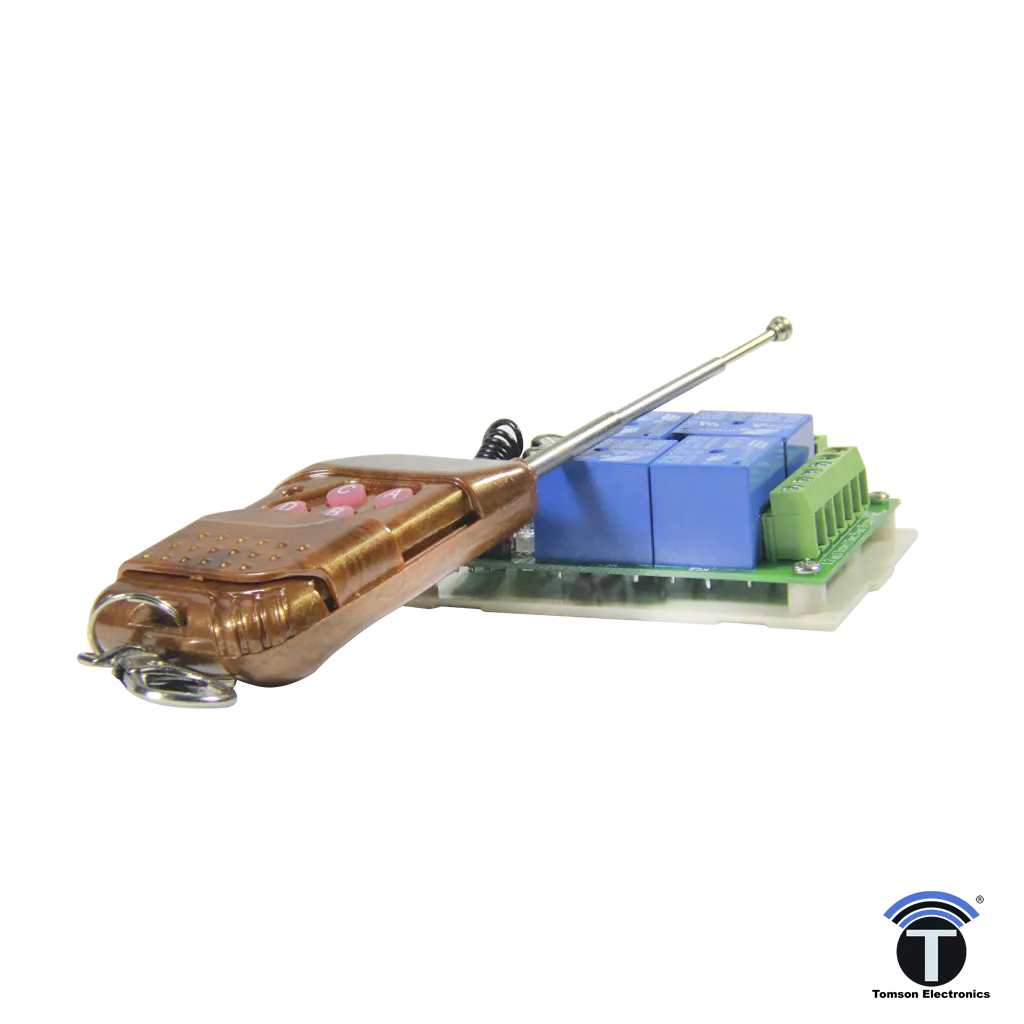

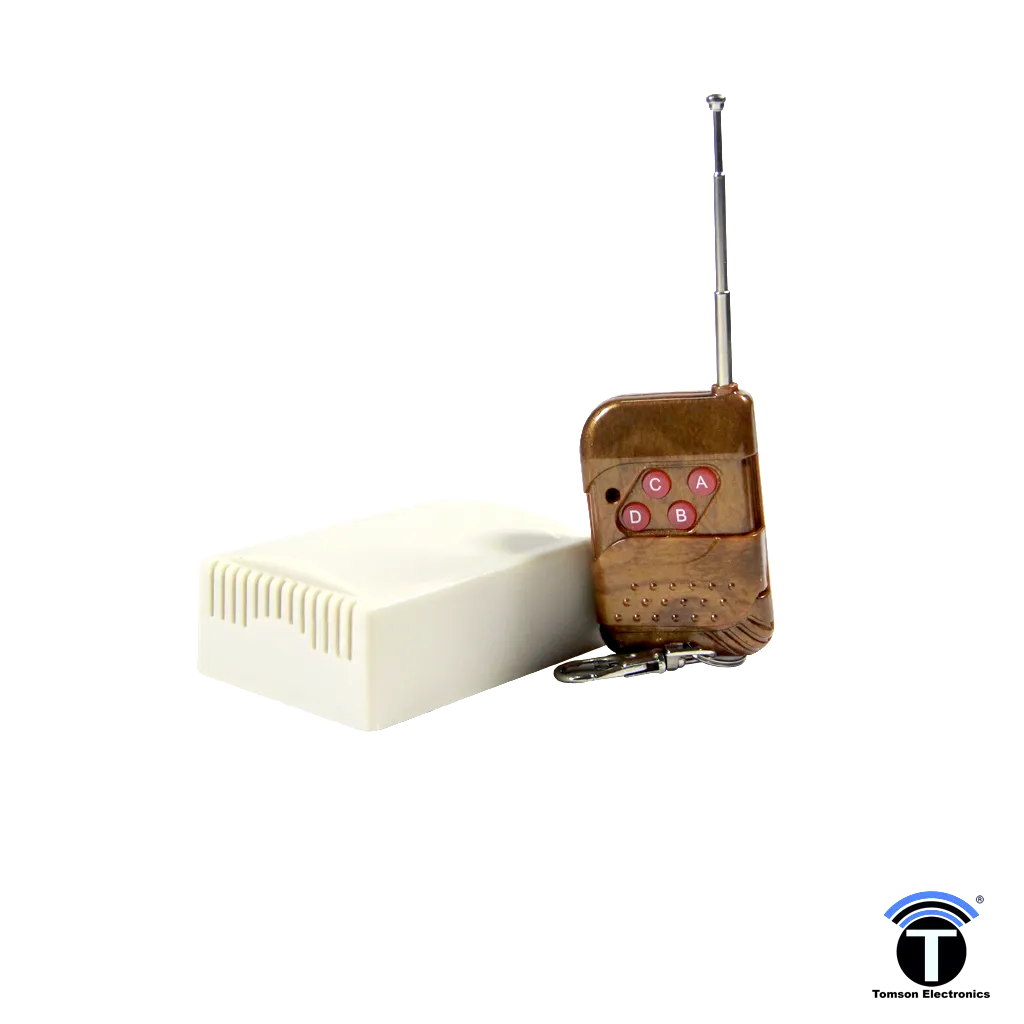

Transmitter
- Battery Type: 1pc L1028 battery (not included)
- Remote Distance: 20-30m (Theoretical value)

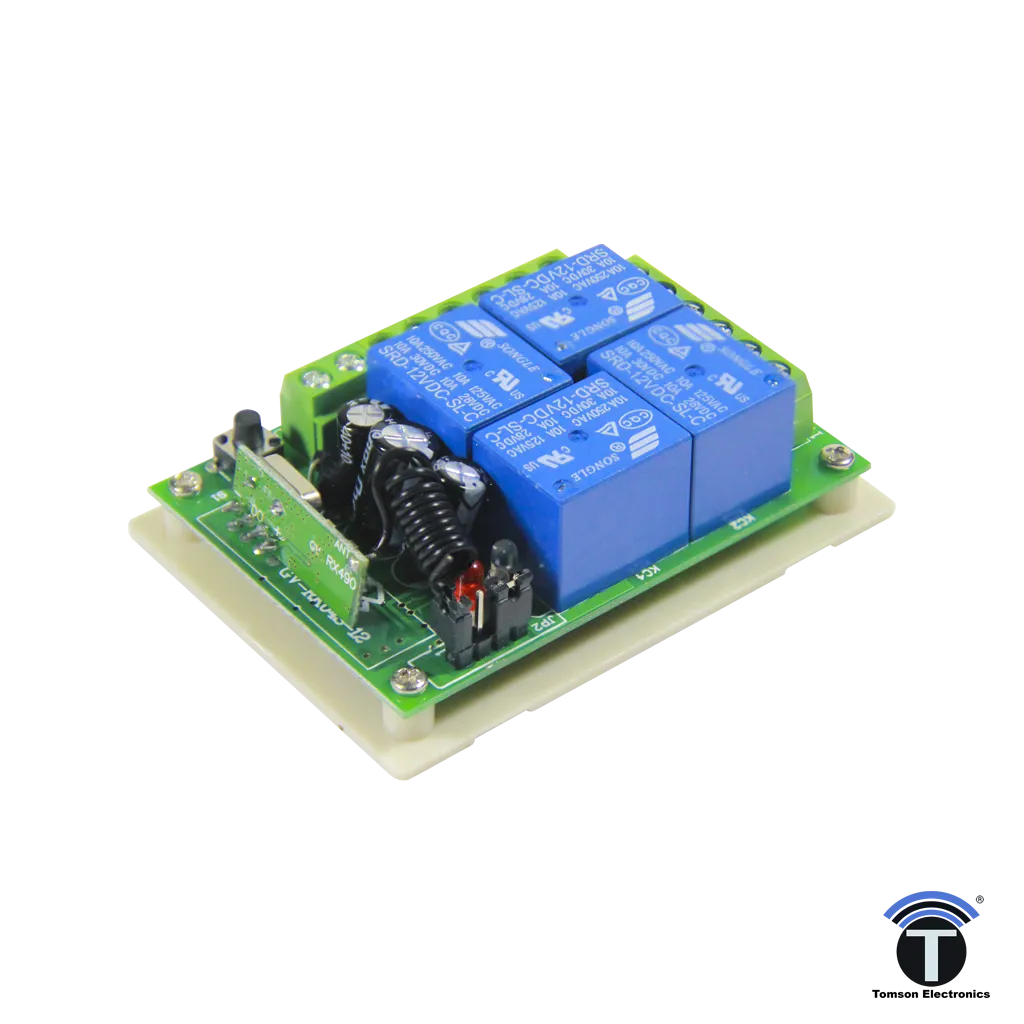

Receiver
- Input Voltage: DC12V
- Operating Frequency: 433MHz
- Channel Numbers: 4CH
- Operation Way: Inching, Self-locking
- Coding Way: Intelligent Learning
- Operating Temperature: -40°C ~ 80°C
- Output Current: ≤ 10A
- Receiver Sensitivity: ≥-105dBm
- Factory Default: Self-locking
- Code:Learning Code ( jog/Non-Latched .inter-lock/Latched .self-lock /Self Latched )
- Board Dimension: 72.5x52.5x23mm
- Case Dimension: 74x53x30mm
FEATURES
- Working voltage: 23-24.5V DC
- VCC - power supply positive, GND - power supply negative
- Working current: 110mA (relay is closed)
- Static working current: 8mA (relay is released)
- Module dimensions: 53 x 62 x 22mm, with three fixed bolt hole
- Module type: 4 channel 433Mhz RF learning wireless receiver module
- Receiver distance: 15-100m (signal can be through walls)
- Working mode: support inching control, self lock control and interlock control as you like
- Working indication:
- LED D1-D4 light (relay turn on/off indicator light)
- LED D5 light (power indicator light)
- LED D6 light (learning signal indicator light)
