Model

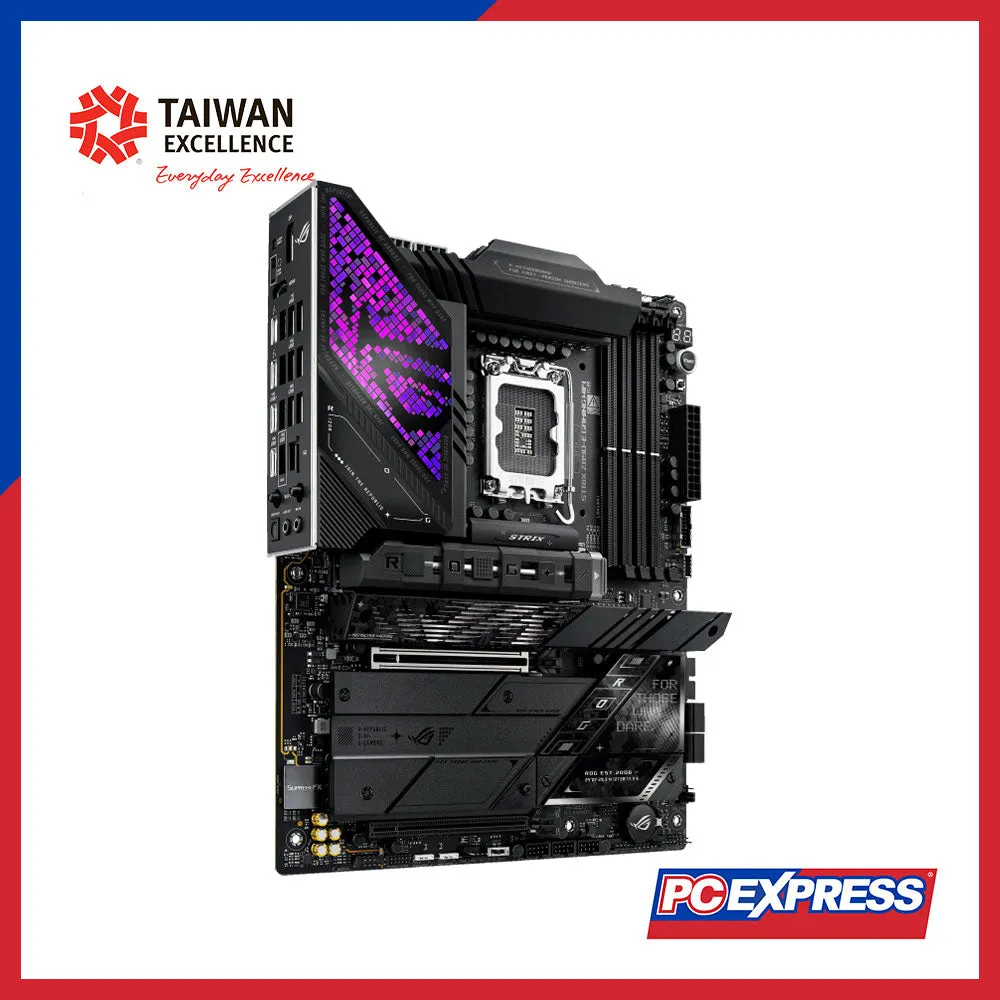

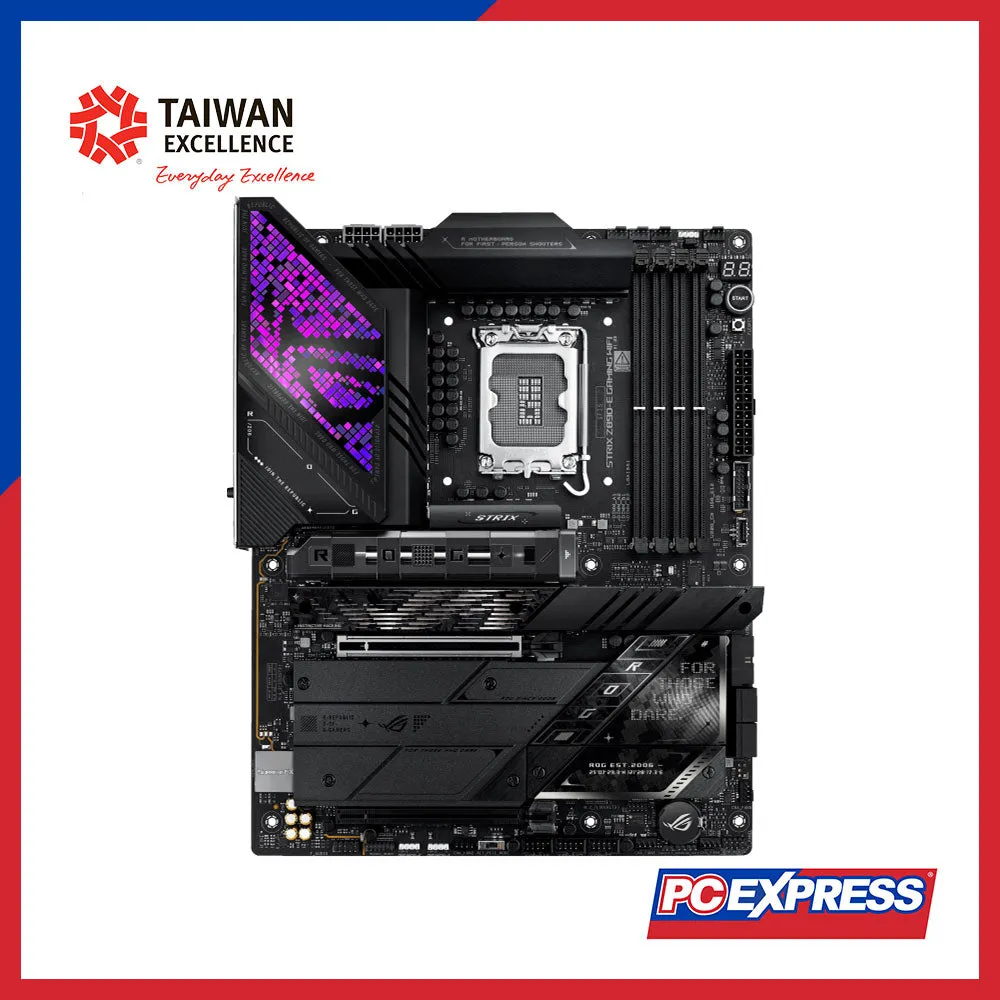

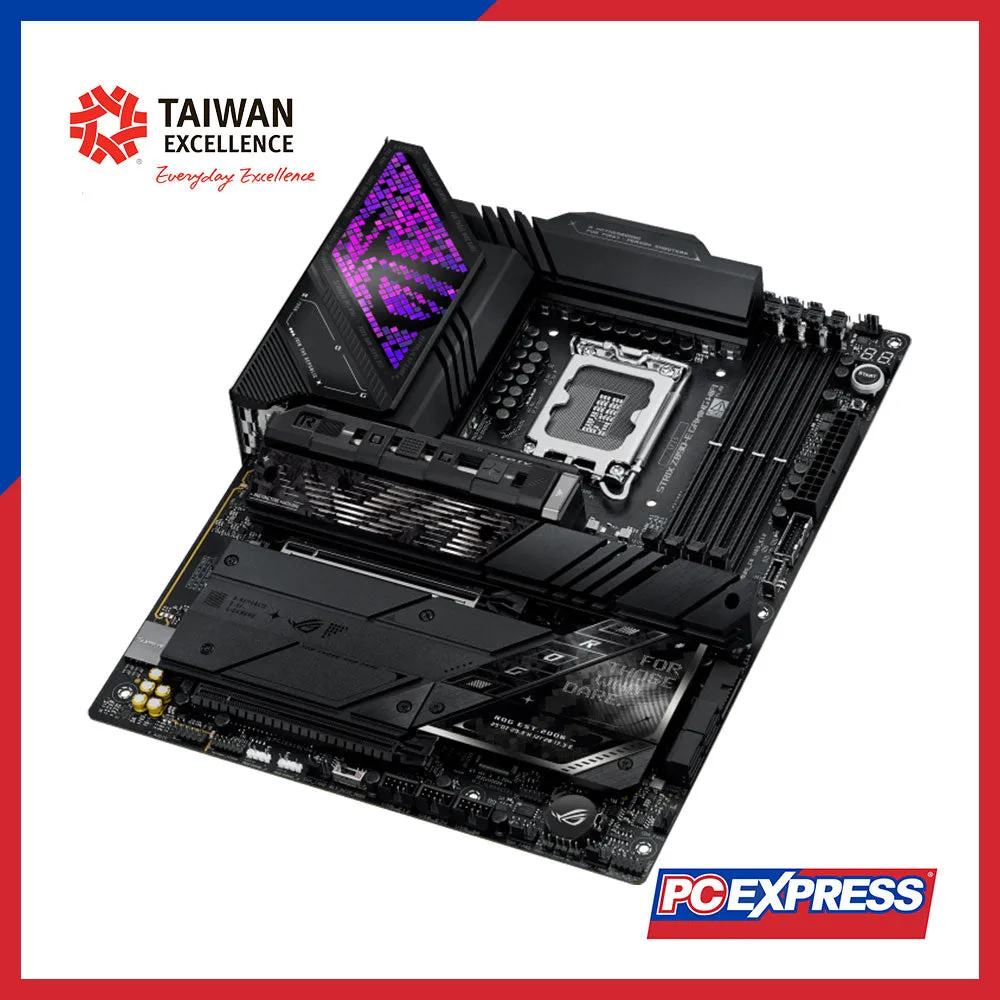

ROG STRIX Z890-E GAMING WIFI

CPU

Intel® Socket LGA1851 for Intel® Core™ Ultra Processors (Series 2); supports Intel® Turbo Boost Technology 2.0 & 3.0.

Chipset

Intel® Z890 Chipset

Memory

4 x DIMM, max. 192GB, DDR5; supports up to 8800 MT/s (OC), XMP, NitroPath DRAM, AEMP III, DIMM Flex, On-Die ECC.

Graphics

1 x DisplayPort (8K@60Hz), 1 x HDMI® (8K@60Hz), 2 x Thunderbolt™ 4 (DisplayPort 2.1, 8K@60Hz with DSC).

Expansion Slots

- 1 x PCIe 5.0 x16 (x16 or x8/x4/x4 modes).
- 1 x PCIe 4.0 x16 (x4 mode).

Storage

- 7 x M.2 slots (2 x PCIe 5.0, 4 x PCIe 4.0, 1 x PCIe 4.0 & SATA).
- 4 x SATA 6Gb/s ports.

Ethernet

1 x Realtek 5Gb Ethernet, ASUS LANGuard.

Wireless

Wi-Fi 7 (802.11be, 2x2, 5.8Gbps), Bluetooth® v5.4.

USB

- Rear: 14 ports (2 x Thunderbolt™ 4, 9 x USB 10Gbps, 3 x USB 5Gbps).
- Front: 11 ports (1 x USB 20Gbps, 4 x USB 5Gbps, 6 x USB 2.0).

Audio

ROG SupremeFX 7.1 Surround Sound, ALC4080 codec, Dolby Atmos, 32-bit/384 kHz playback, gold-plated audio jacks, Savitech SV3H712 AMP.

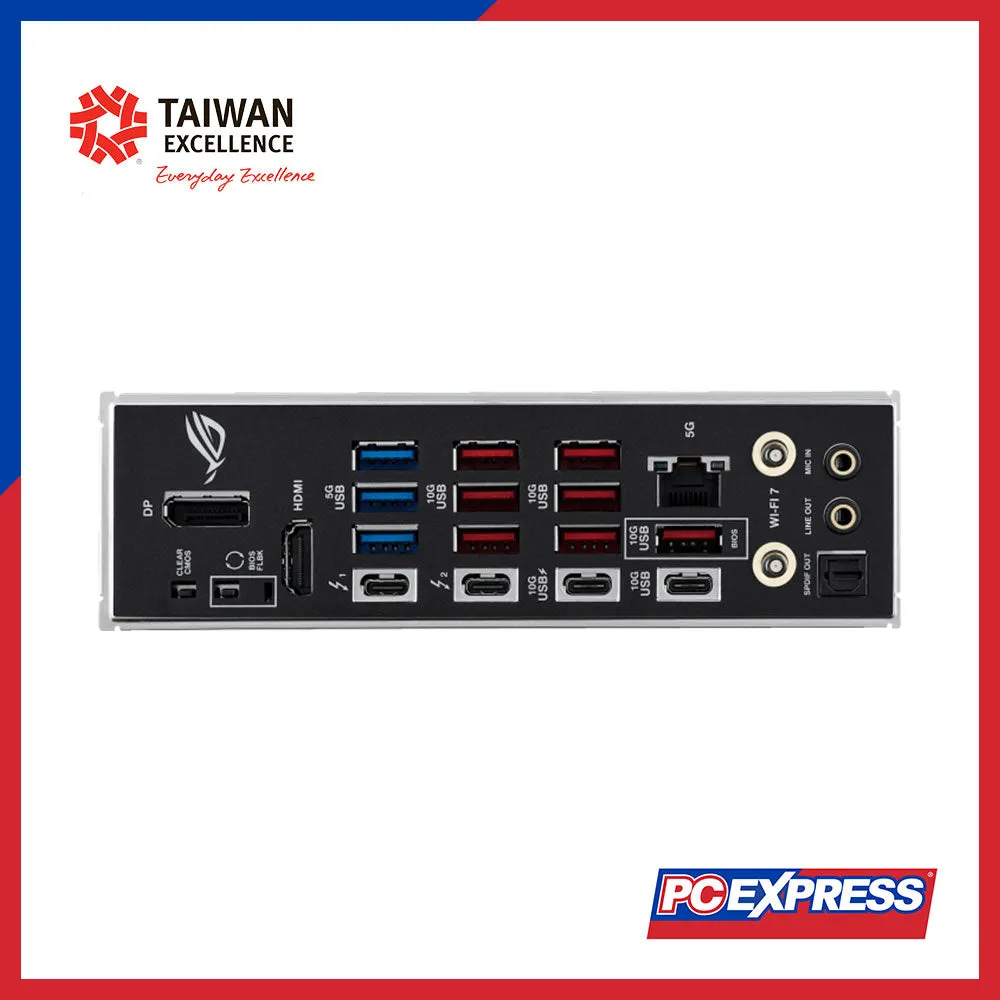

Back Panel I/O

2 x Thunderbolt™ 4, 9 x USB 10Gbps, 3 x USB 5Gbps, 1 x DisplayPort, 1 x HDMI®, 1 x Ethernet, Wi-Fi module, 2 x audio jacks, 1 x S/PDIF, BIOS FlashBack™ and Clear CMOS buttons.

Internal I/O

7 x M.2 slots, 4 x SATA ports, 1 x USB 20Gbps (Type-C), 4 x USB 5Gbps, 6 x USB 2.0, multiple fan, power, and thermal sensor headers, addressable Gen2 headers, Thunderbolt™ header.

Special Features

Extreme Engine Digi , Q-Design (M.2 Q-Latch, PCIe Slot Q-Release), ASUS Thermal Solution (VRM heatsink, M.2 backplate), Aura Sync, AI Overclocking, FlexKey.

Software

ROG CPU-Z, Dolby Atmos, Armoury Crate, Aura Sync, AI Cooling II, GameFirst, AIDA64 (trial), Norton 360 (trial), Adobe Creative Cloud (trial), USB Wattage Watcher, Fan Xpert 4.

BIOS

256 Mb Flash ROM, UEFI AMI BIOS, features ASUS EZ Flash, CrashFree BIOS 3, AI Overclocking Guide, MyHotkey.

Manageability

WOL by PME, PXE.

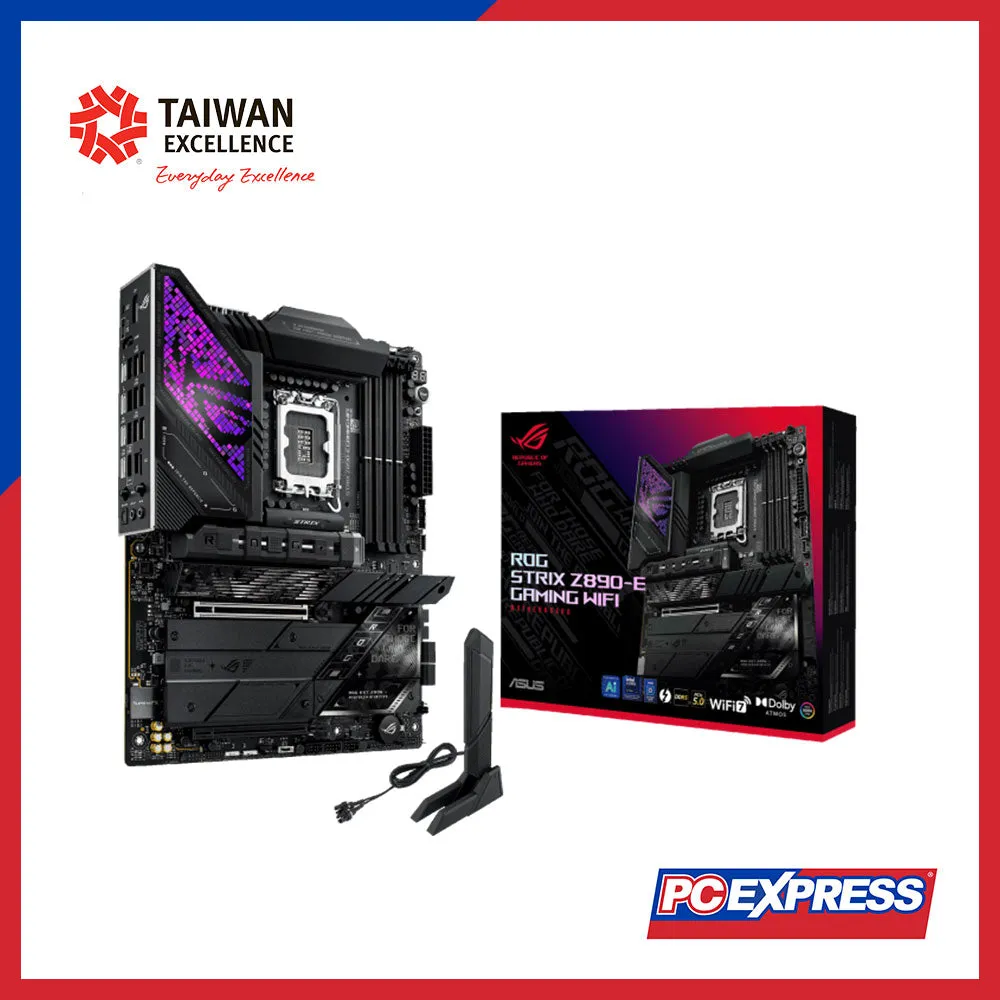

Accessories

2 x SATA cables, Wi-Fi Q-Antenna, cable ties, thermal pad, M.2 Q-Latch & Q-Slides, ROG stickers, key chain, Quick Start Guide.

Operating System

Windows® 11 (22H2 & later).

Form Factor

ATX (12 x 9.6 inches / 30.5 x 24.4 cm).
