Audix M70W Overview

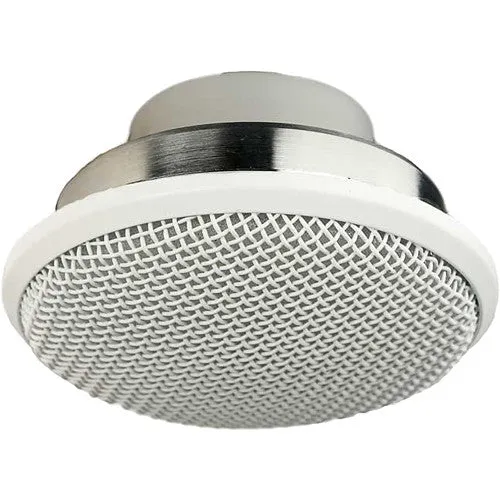

An audio installer will appreciate the Audix M70W Flush-Mount Ceiling Microphone, a white, steerable, flush-mount condenser microphone well suited for video teleconferencing, distance learning, boardrooms, surveillance, hospital and medical procedures, and ambient room miking applications.

The M70W capsule features a 12mm gold vapor diaphragm that's capable of capturing frequencies from 60 Hz to 10 kHz with a maximum sound pressure level (SPL) of 130 dB. The capsule is housed within a cradle that allows the microphone to be aimed up to an angle of 45°. Other features include a fully integrated preamp and an extremely high-sensitivity rating with complete immunity from RF interference. Installing the M70W requires only a single 2" hole in the ceiling, with no additional tools needed.

Benefits

High output for distance miking
Immunity from RF interference
Miniaturized integrated preamp circuitry
12mm gold vapor diaphragm
Includes plenum rated box
No external power adapter
Point and shoot directivity
Designed, assembled, and tested in the USA

Applications

Video Conferencing
Distance Learning
Surveillance
Hospital and Medical Procedures
Ambient Room Miking

Audix M70W Specs

Microphone

Primary Applications	Web-Streaming, Corporate Presentation, Conferencing, Security
Form Factor	Boundary/Surface Mount
Intended Sound Sources	Speech/Voice Over, Room Ambiance
Sound Field	Mono
Capsule	Condenser
Diaphragm	0.5" / 12 mm
Polar Pattern	Cardioid
Orientation	End Address
Circuitry	Solid-State
Pad	None
High-Pass Filter	None
Tone Adjustment	None
Gain Adjustment	None
Indicators	None
On-Board Controls	None
Windscreen	None

Performance

Frequency Range	60 Hz to 10 kHz
Maximum SPL	130 dB SPL
Impedance	150 Ohms
Sensitivity	38 mV
Dynamic Range	108 dB
Signal-to-Noise Ratio	72 dB
Equivalent Noise Level	22 dB
THD	5%

Connectivity

Output Connectors (Analog)	1 x Euroblock 3-Pin (Locking)
Headphone Connector	None
Cable Length	1' / 30.5 cm
Bus Power	None

Physical

Color	White
Mounting	Surface-Mount (Included)
Included Case	None
Included Filters	None
Construction Material	Aluminum, Brass, Steel
Dimensions	ø: 3 x L: 6.9" / ø: 76.2 x L: 175.3 mm
