PRODUCT DESCRIPTION

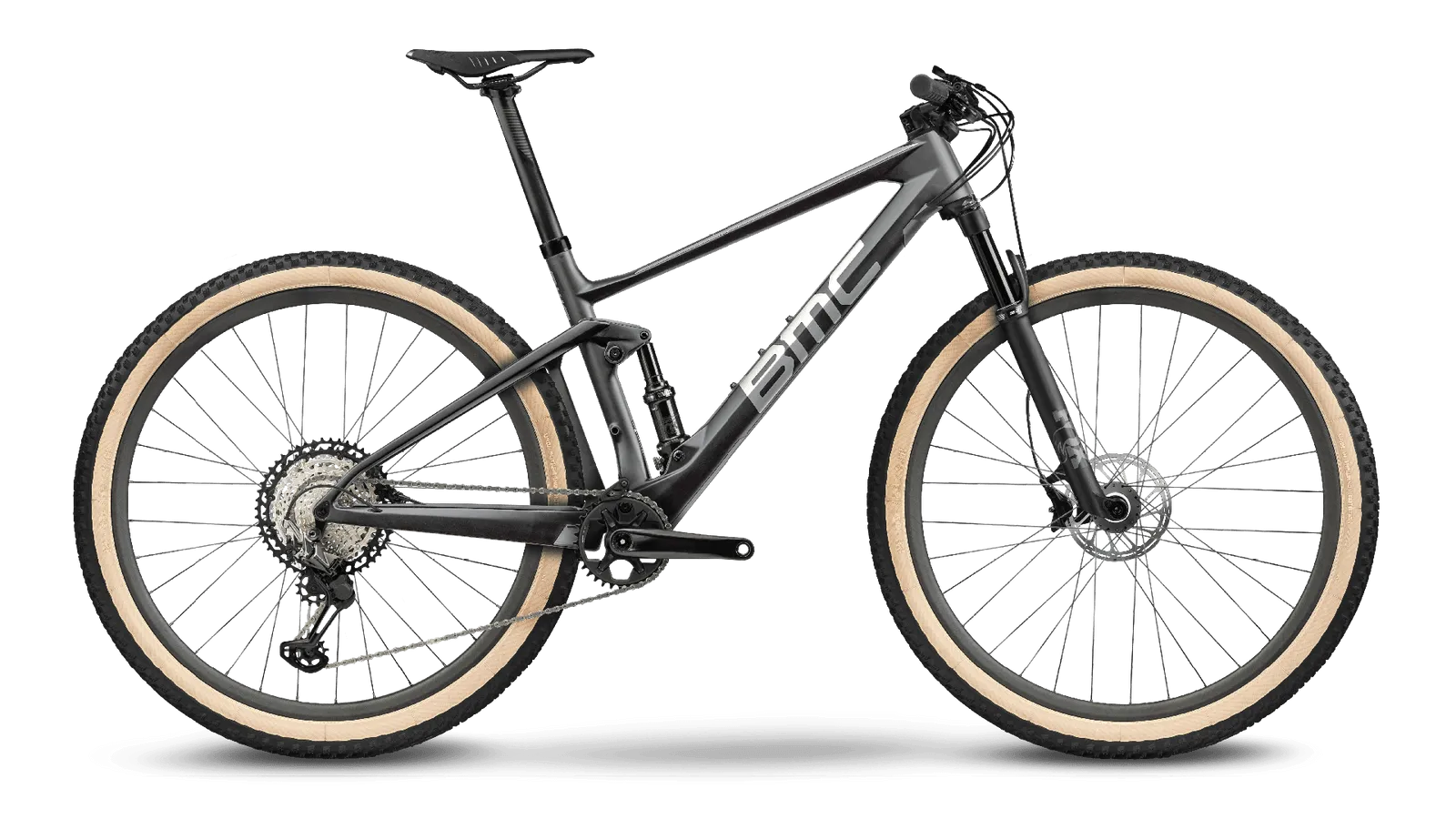

Race like a champion, ride like a seasoned vet with the 2022 BMC Fourstroke 01 THREE full suspension cross country mountain bike while you spend like a budget-minded penny pincher.
The 2022 BMC Fourstroke 01 THREE is designed to dominate cross-country race courses, from the World Cup level to your local series.
Born to surpass the demands of the world’s top endurance racers, the Fourstroke 01 THREE utilizes 100mm of front and rear travel and sports the revolutionary RAD integrated dropper post, to assemble the most innovative XC race machine.
The Fourstroke 01 THREE has thrown out the XC rulebook. Crafted from lightweight 01 Premium Carbon, this innovative full-suspension race bike utilizes a legion of ground-breaking features, including the world's first integrated RAD dropper seatpost to deliver the optimum riding position uphill and down. The all-new, progressive geometry is ideal for charging technical XC descents and has our BMC MTB Team raving, because they know that they've got an ace up their sleeves.
The first integrated XC dropper post provides a radical competitive edge by deliver the optimum riding position, uphill and down. It's RAD. APS dual-link suspension technology allows you to pedal efficiently, brake hard, and charge rough terrain without compromise.
The Fourstroke 01 THREE features a full-carbon frame with a new, super-light carbon upper link. The premium carbon upper link that saves weight and provides a robust connection between the front and rear triangles.
Engineered for optimized cable routing and frame protection. The integrated fork stopper protects the frame from impacts and allows a straight downtube design for improved stiffness and weight. The cable cover allows for clean cable entry and creates an additional protection layer.
SPECIFICATIONS
- SpecSLX
- FrameFourstroke 01 Premium Carbon with APS Suspension SyStem, 100mm Travel • Fully Guided Internal Cable Routing • PF92 Bottom Bracket • Post Mount Disc • 12x148mm Boost Thru-Axle
- ForkFox Float 32 SC Performance
- Rear ShockFox Float DPS Performance
- Gears1x12
- ChainwheelSHIMANO SLX 34T
- CassetteSHIMANO Deore 12 spd 10-51T
- ChainSHIMANO 12 spd
- Rear DerailleurSHIMANO SLX
- ShiftersSHIMANO Deore 12 spd
- BrakesSHIMANO Deore SLX / SHIMANO SM-RT66 Rotors (160/160)
- HandlebarBMC MFB02 Alloy 750mm
- StemBMC MSM01
- SeatpostBMC RAD, Integrated Dropper Seatpost • 80mm Drop
- SaddleFizik Antares R7
- HubsSHIMANO MT400 / MT410
- RimsSHL28OS, 25mm Inner Width
- TiresVittoria Barzo 2.25
- Tire Clearance58mm (Measured Width)
- Weight (Kg)1.0
- Weight Limit110kg
- ASTM ClassificationLevel 3
- Frameset OptionNo
- ConfigurableNo
- Dropper SeatpostYes
GEOMETRY
| SIZE | S | M | L | XL |
|---|---|---|---|---|
| Rider Height CM | <172 | 172-182 | 180-188 | >188 |
| Top Tube MM (tt) | 582 | 607 | 630 | 654 |
| Wheelbase MM (wb) | 1129 | 1155 | 1180 | 1206 |
| Seat Angle (sa) | 75.6 | 75.6 | 75.6 | 75.6 |
| Seatpost Drop MM | 80 | 80 | 80 | 80 |
| Stack MM | 580 | 590 | 600 | 615 |
| Trail MM (trail) | 106.5 | 106.5 | 106.5 | 106.5 |
| Rear Center MM (rc) | 429 | 429 | 429 | 429 |
| Reach MM (reach) | 423 | 445 | 465 | 485 |
| Head Tube MM (ht) | 96 | 107 | 117 | 134 |
| Head Angle (ha) | 67.5 | 67.5 | 67.5 | 67.5 |
| BB Drop MM (drop) | 44 | 44 | 44 | 44 |
| Stem Length MM | 50 | 60 | 60 | 70 |
| Seat Tube MM (st) | 420 | 440 | 480 | 510 |
| Stem Angle | -5 | -5 | -5 | -5 |
| Rear Travel | 100mm | 100mm | 100mm | 100mm |
| Crank Length MM | 170 | 175 | 175 | 175 |
| Fork Rake MM (fr) | 44 | 44 | 44 | 44 |
| Front Center MM (fc) | 700 | 726 | 750 | 777 |
| Fork Length MM (fl) | 506 | 506 | 506 | 506 |
| Bar Rise MM | 4 | 4 | 4 | 4 |
| Bar Width MM | 760 | 760 | 760 | 760 |
| Backsweep | 8 | 8 | 8 | 8 |
