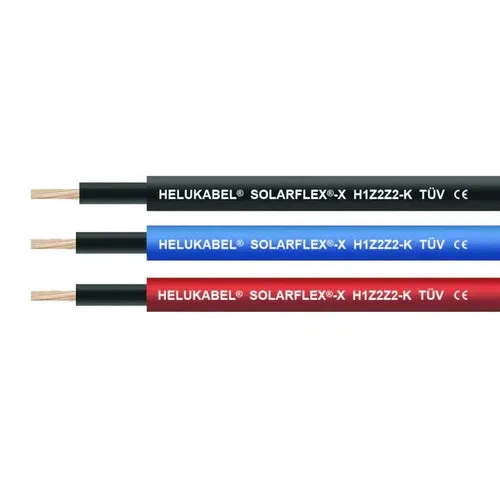

The Helukabel SOLARFLEX-X Single-Core DC Cable is used for cabling solar modules (HD 60364-7-712). It is suitable for use in fixed installations both indoors and outdoors, in walls, pipes, conduits, direct burial and similar systems. It complies with class II protection, and is short-circuit and earth fault proof in accordance with HD 60364-5-52.

• Cables for PV systems according to EN 50618
• Temperature range -40°C to 90°C
• Permissible operating temperature at the conductor 120°C
• Nominal voltage AC 1.0/1.0kV, DC 1.5/1.5kV
• Maximum permissible DC voltage: 1.8kV
• Test voltage AC: 6.5kV
• Minimum bending radius: fixed installation 5x outer Ø
