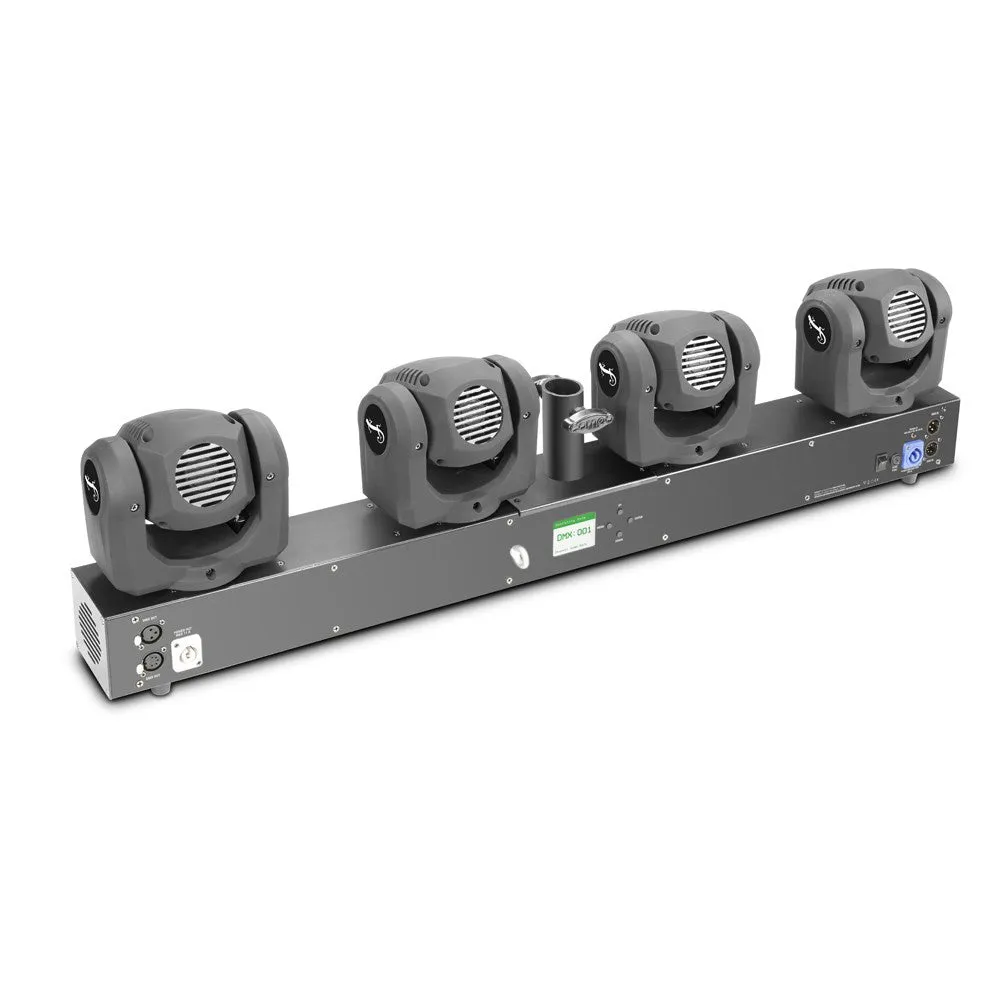

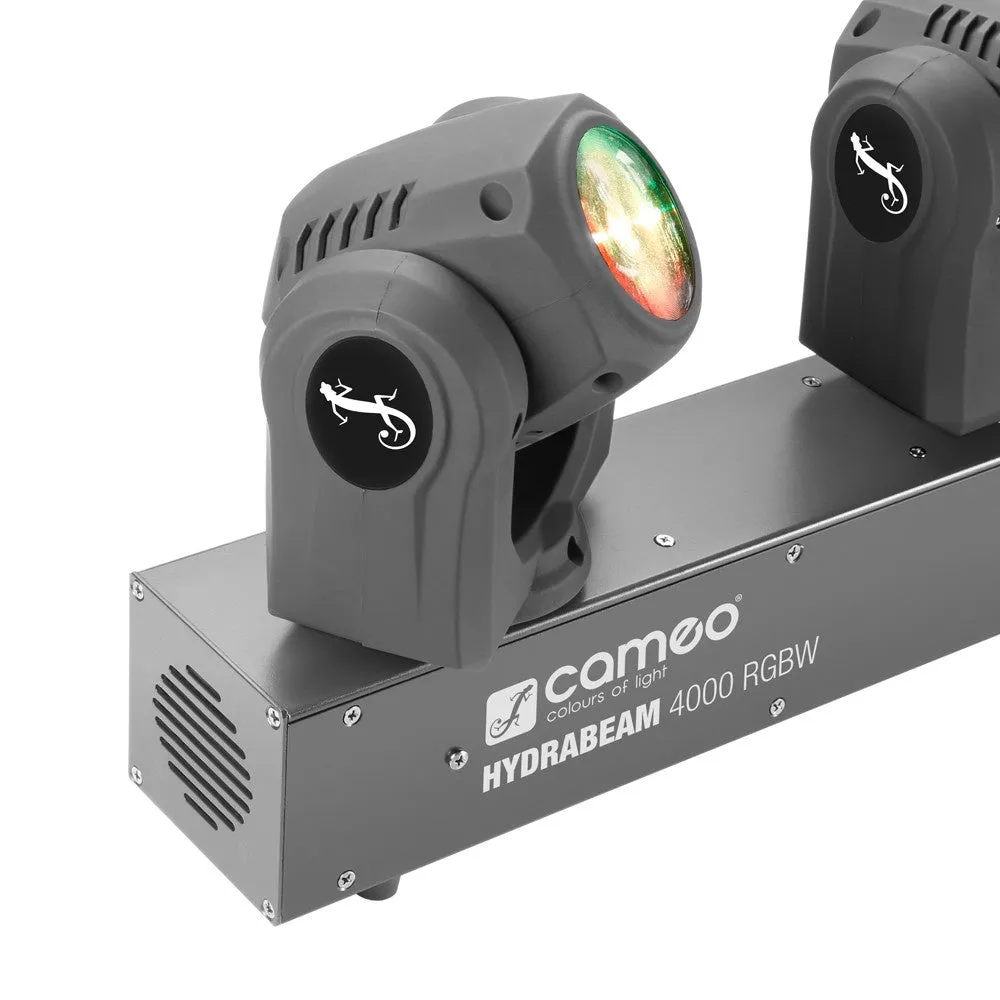

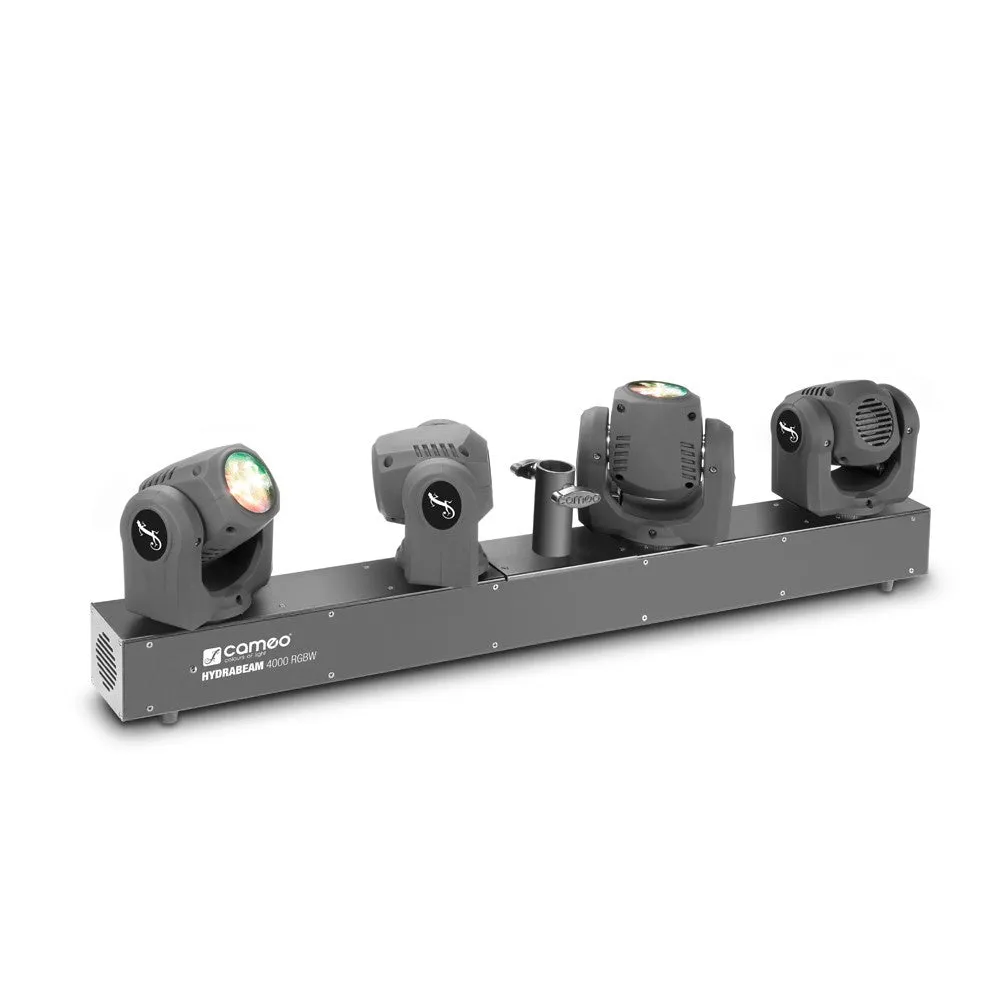

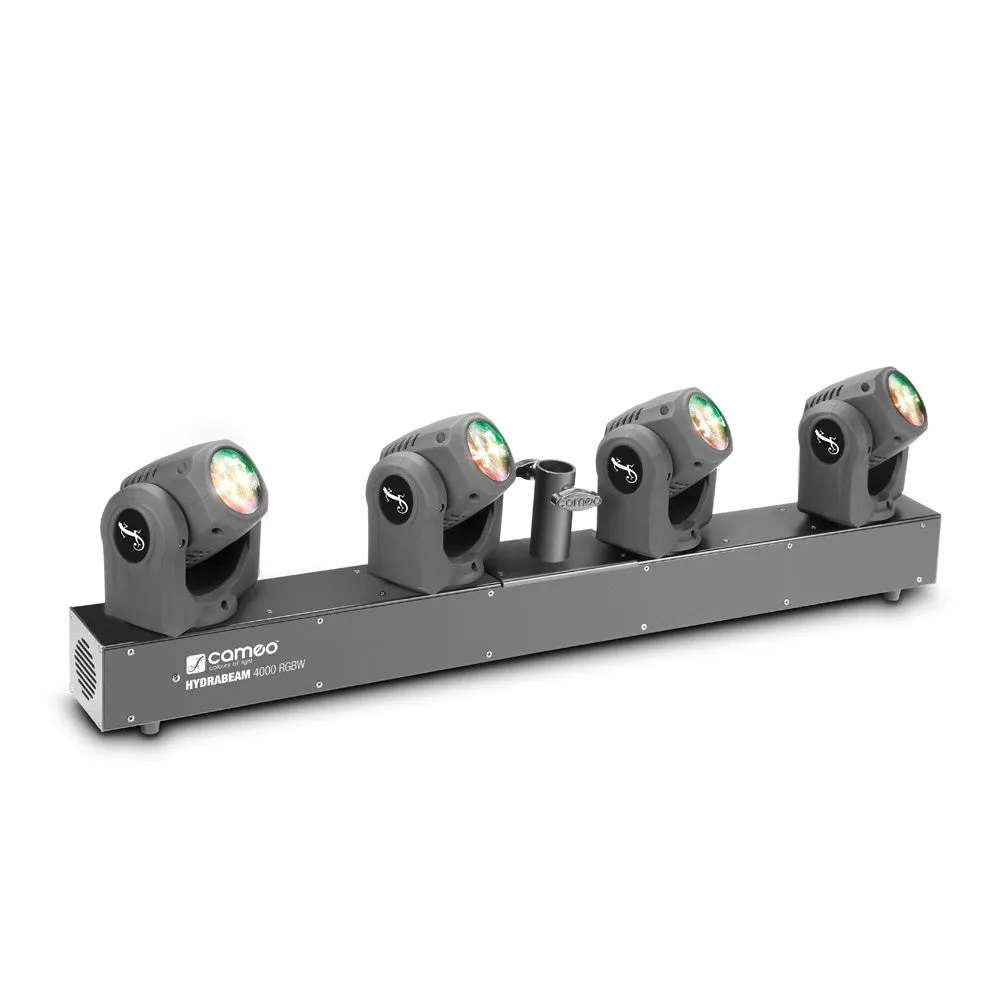

The Cameo Hydrabeam 4000 features four individually controllable moving heads on a 100 cm (3.28 ft.) bar with ultra fast 540° pan and 270° tilt. They are equipped with powerful 32 W quad LEDs for brilliant, uniform colour mixes and project razor sharp beams with an extremely focused 2.5° spread.
The Hydrabeam 4000 provides 5 modes of DMX control, sound activation and automatic operation with 16 exciting built-in programs. In addition, the fixture permits smooth dimming and includes a high-speed strobe function firing a maximum of 20 intense flashes per second.

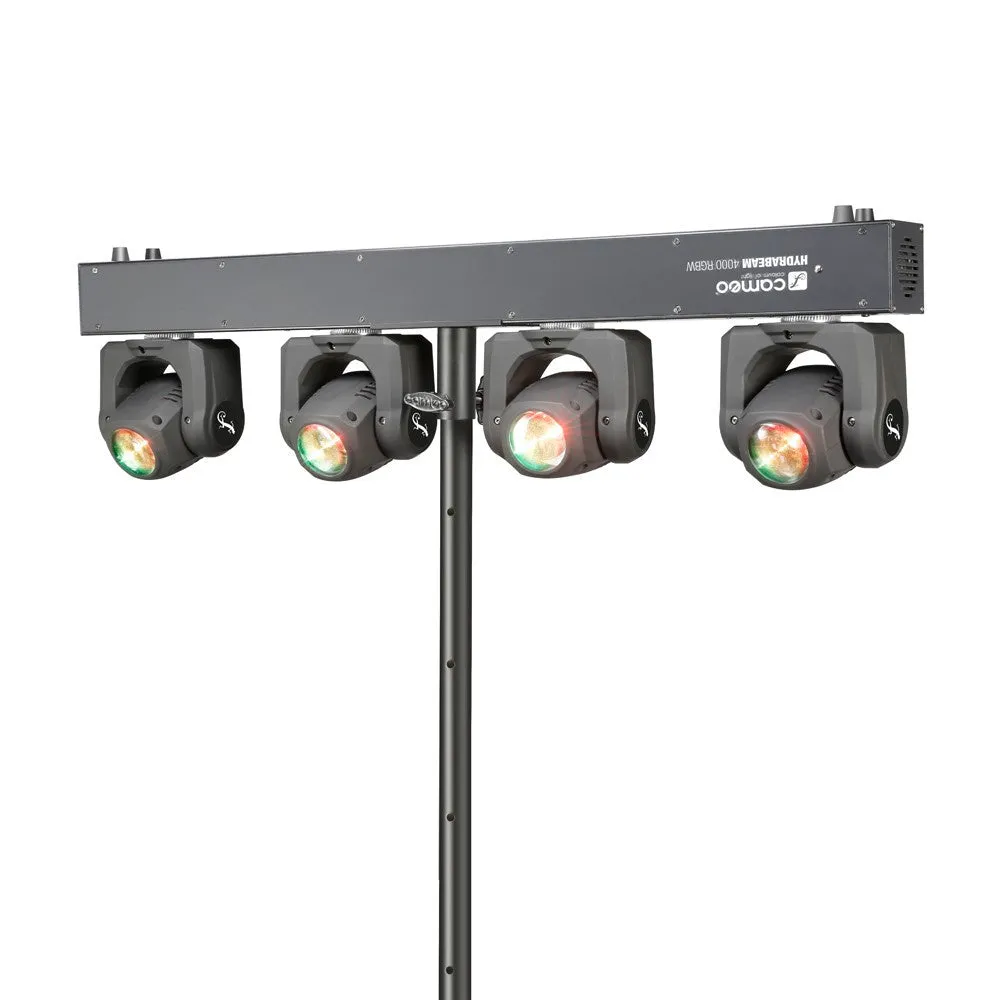

The compound ABS and metal construction integrates a low-noise fan and a 4-button colour display that permits easy, intuitive configuration and manual operation. 3 and 5-pin DMX inputs and outputs plus the blue and grey Power Twist connectors enable convenient and versatile daisy-chaining. The Hydrabeam 4000 comes with dual Omega brackets and a pole adapter virtually covering all mounting options.
Features
- Lighting system with 4 individually controllable moving heads
- Ultra fast 540° pan and 270° tilt
- Powerful 32 W RGBW Quad LEDs

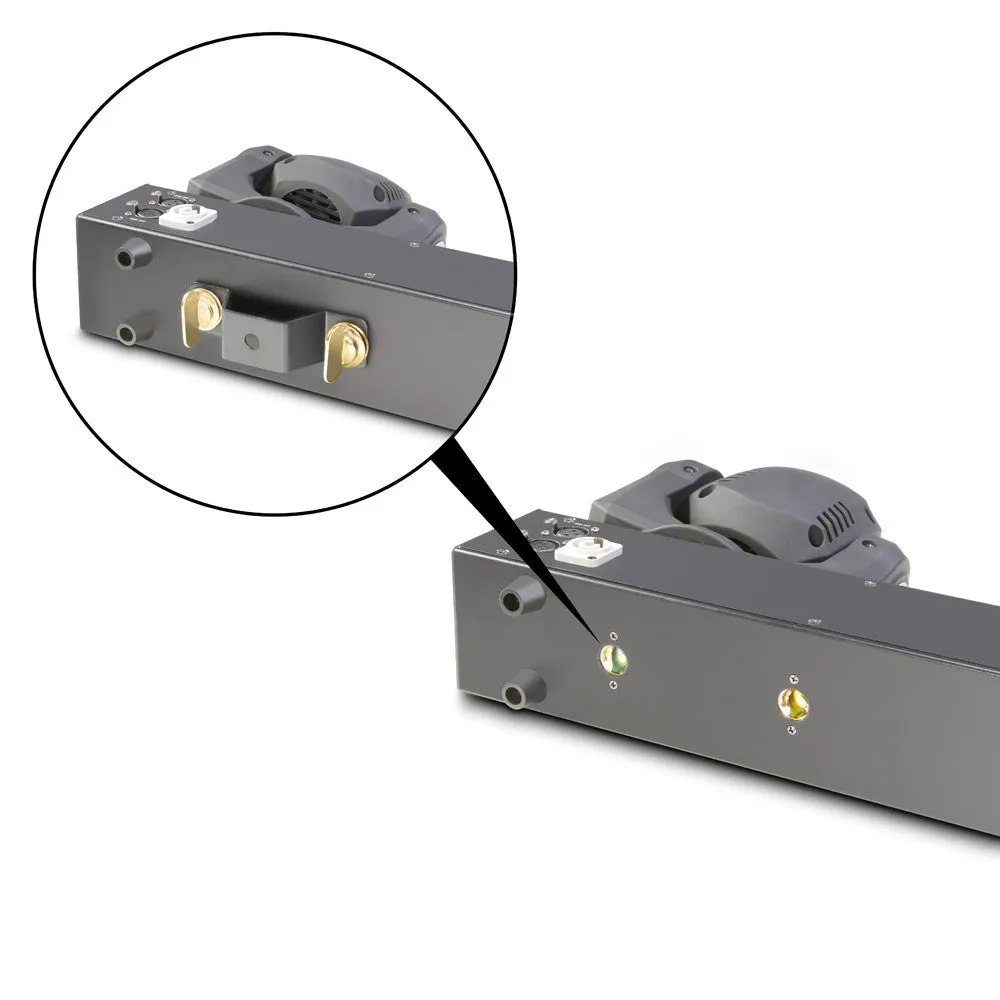

- Universal mounting options
- 2 Omega brackets and pole mount adapter included

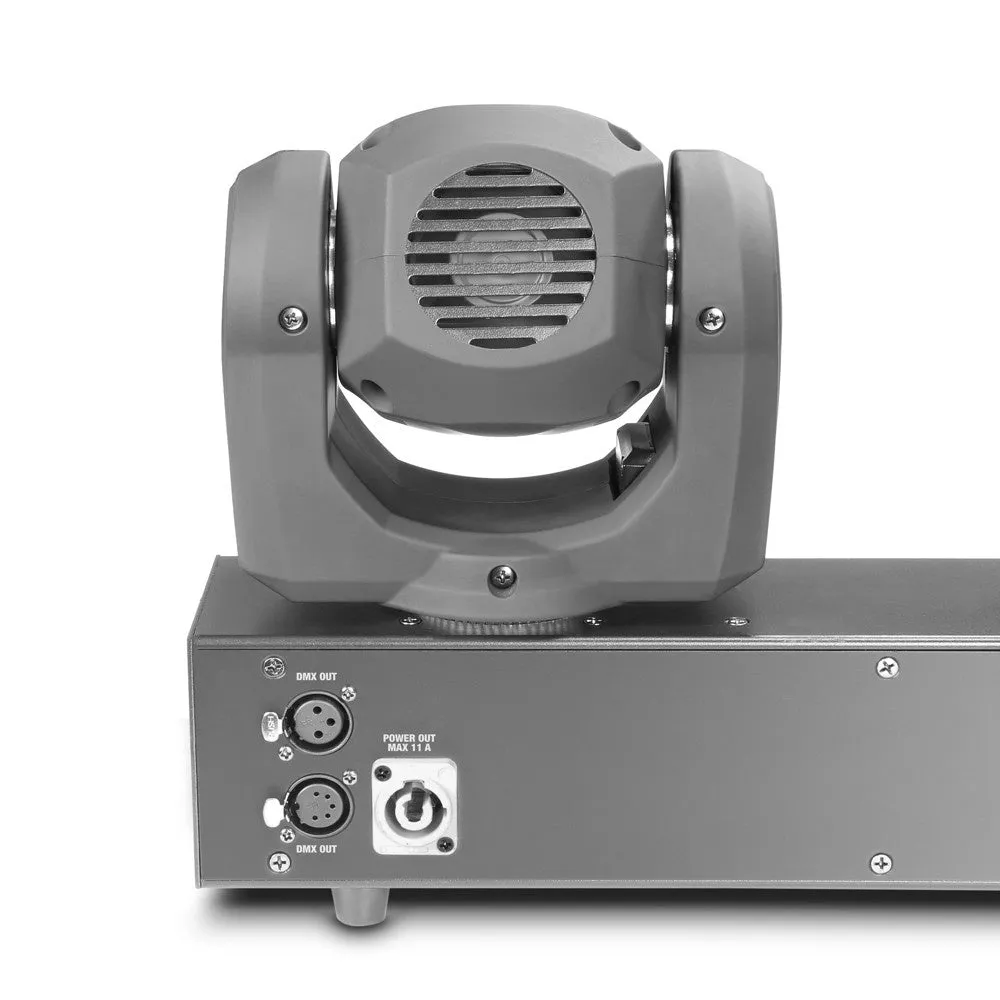

- Blue and grey Power Twist plus 3 and 5-Pin DMX connectors
- Easy daisy chaining and power linking
- 5 DMX modes, sound activation and automatic operation
- 16 exciting auto-run programs
- 4-button LC colour display for intuitive configuration
Specifications
- Product type: LED Moving Lights
- Type: LED Moving Lights
- Colour spectrum: RGBW
- Number of LEDs: 4
- Average LED lifetime: 50000 hrs.
- LED type: 32 W
- Refresh rate: 6000 Hz
- Dispersion: 2.5 °
- DMX input: XLR 3-pin male, XLR 5-pin male
- DMX output: XLR 3-pin female, XLR 5-pin female
- RDM: No
- Protocols: USITT DMX-512
- DMX mode: 10-channel, 19-channel, 32-channel, 56-channel, 6-channel
- DMX Functions: Auto programs, colour change, Dimmer, PAN, Strobe, TILT
- Wireless DMX: No
- PAN movement: 540
- TILT movement: 270
- High Speed Strobe: 1 - 20 Hz
- Standalone modes: Auto run, sound control
- Controls: Enter, LCD display, Mode, Value Down, Value Up
- Indicators: colour LC display
- Operating voltage: 100 V AC - 240 V AC, 50 - 60 Hz
- Power consumption: 220 W
- How many devices can be connected (110 V): 3
- How many devices can be connected (240 V): 5
- Fuse: F3AL / 250 V
- Power connector: Blue Power Twist, male
- Power supply connection: Grey Power Twist, female
- Max. output current: 11 A
- Housing material: ABS plastic, Metal
- Cabinet colour: Black
- Protection class IP: IP20
- Cooling: low-noise fan
- Illuminance: blue 9600lx @ 1m, green 42400lx @ 1m, red 17900lx @ 1m, white 67200lx @ 1m
- Maximum Ambient Temperature: 0 - 40° C °C
- Width: 90 mm
- Height: 270 mm
- Depth: 1000 mm
- Weight: 11,6 kg
