The Cameo AZOR B1 is a powerful Beam Moving Head featuring a high-quality glass lens, an extremely narrow 2° beam angle and motorised focusing. 16-bit, three-phase motors provide 540° panning and 270° tilting with automated position correction. A cold-white 100 W LED with 9,400 K colour temperature achieves incredible 180,000 lx light intensity at 3 metres, while the colour wheel offers 14 intense colours, plus white and split colours, to choose from.

Additional features of the AZOR B1 include 17 static gobos, a circular eightfold and a linear sixfold prism that are rotatable and indexable. When using as a standalone, four macros are available to freely program and can be perfectly synchronised in master-slave operation or inverted. The spotlight also features a rapid strobe function and a quiet, temperature-controlled fan.

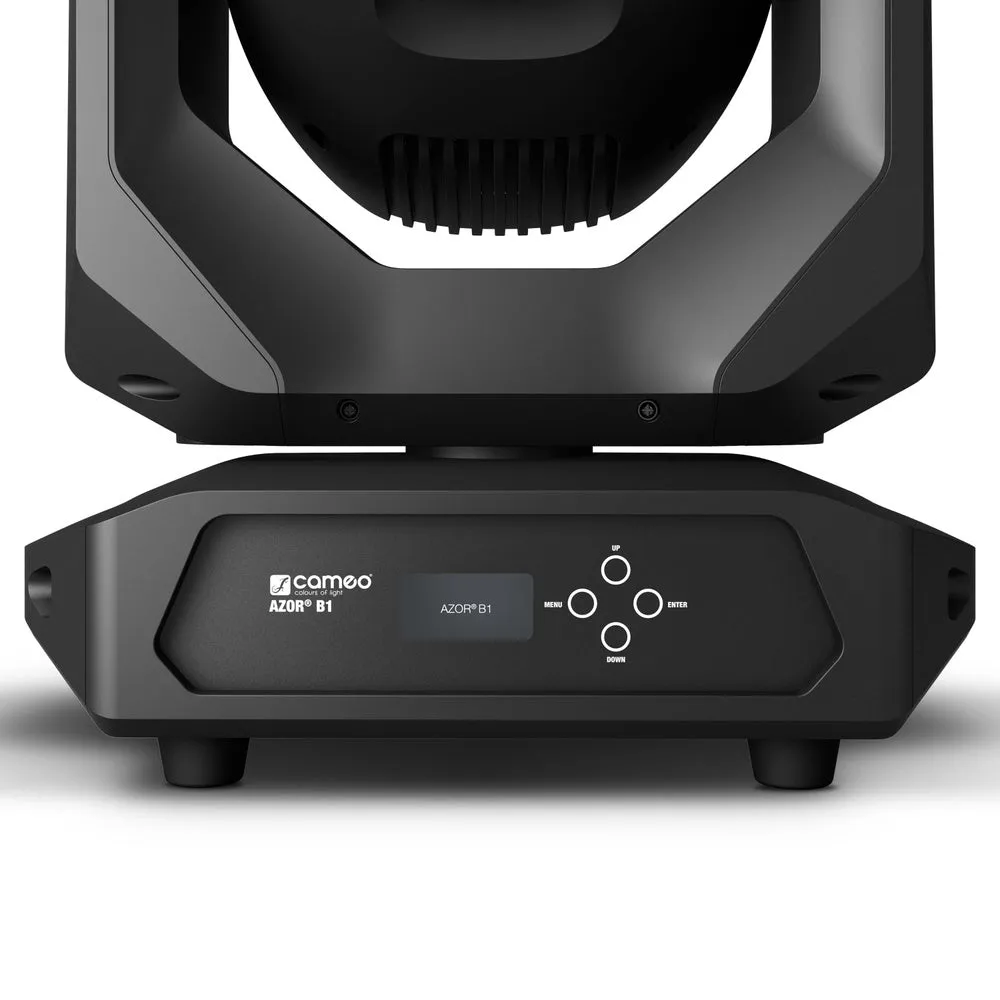

Easy configuration is facilitated by the AZOR B1’s OLED display and four buttons, 3- and 5-pin DMX inputs and outputs, while Power Twist sockets ensure unproblematic daisy chaining. The Beam Moving Head is supplied with three Omega brackets and a power cable.

Features

• Beam Moving Head with 180,000 lx light intensity @ 3 m
• Optical glass lens with extremely narrow 2° beam angle
• 16-bit three-phase motors
• 540° panning and 270° tilting with automated position correction.
• Motorised focusing
• 14 colours plus open and split colours
• 17 static gobos plus open
• Rotatable and indexable circular eightfold prism
• Rotatable and indexable linear sixfold prism
• 4 programmable macros for standalone and master-slave operation

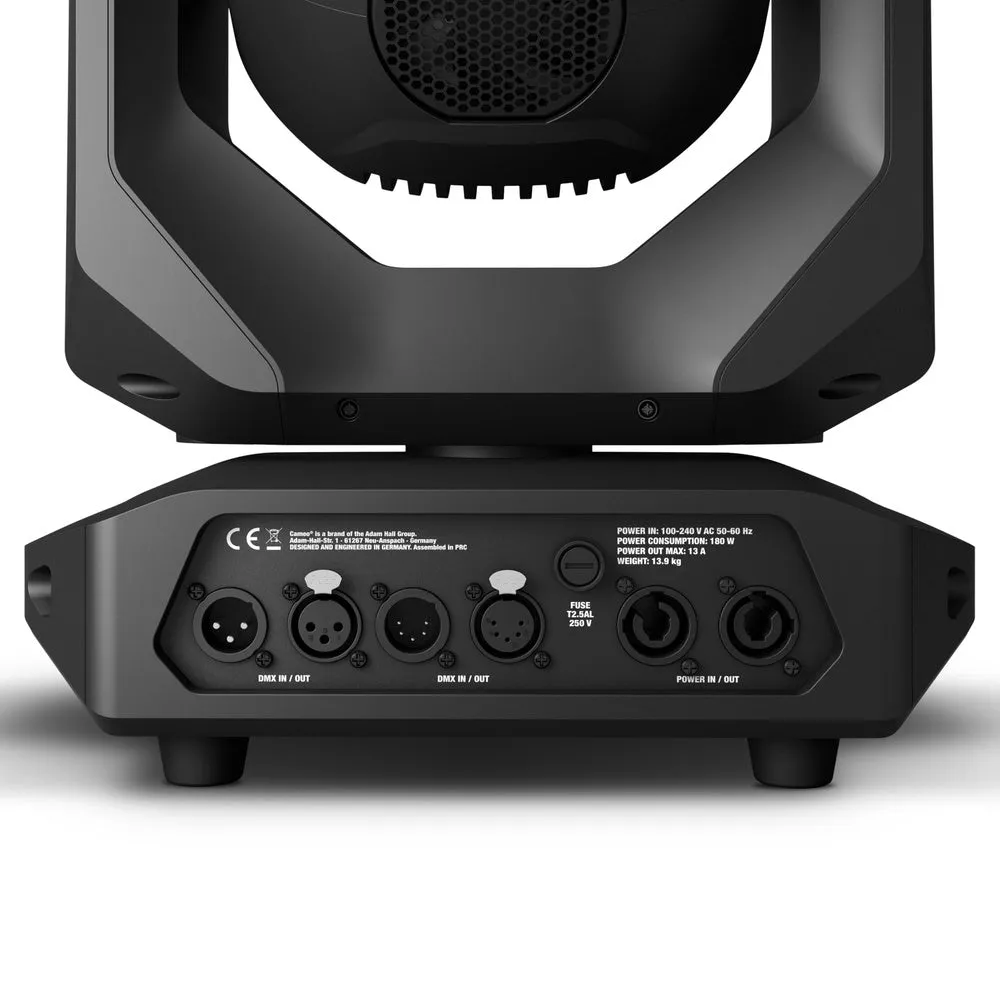

• 3-pin & 5-pin DMX sockets and Power Twist power in and power out sockets
• Two Omega brackets and power cable included
• 2 x Omega Clamp, Power supply

Specifications
