[shortdesc]The Grundfos CMBE Variable Speed Pressure Pump is a pump that adjusts according to water pressure demands [/shortdesc][specsheet][/specsheet] [specification] Mains voltage: 1 x 240 V, 50 Hz
Enclosure class: IP55
Insulation class: F
Sound pressure level: 50-60 dB
Start/stop frequency: Max. 100 per hour
Approvals and markings: CE



Applications:
- Mains boosting
- Household water supply
- Boosting from above ground water tanks [/specification]

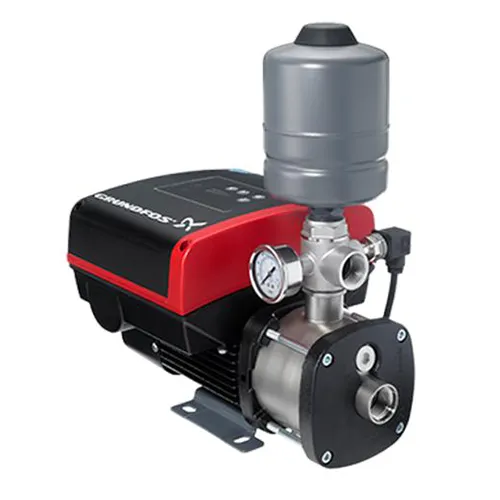

Components: • CME pump with integrated frequency converter with all parts in contact with the liquid constructed from stainless steel (AISI 304)
• 5-way valve with non return valve
• Expansion vessel 2 litre
• Pressure sensor and pressure gauge
• Power cable - 1.5 m length

Liquid temperature: 0°C to 60°C
Ambient temperature: 0°C to 55°C
Supply voltage: 1 x 240 Volt 50 Hz
System pressure: Maximum 10 bar
Enclosure class: Suitable for covered installation (IP55)

Robust Design

All wetted parts are made from high quality stainless steel to ensure the longest life possible.

Energy Saving

The frequency controller of the CME Booster matches the power consumption with the required water output, helping to conserve energy.

Easy Installation

The CME Booster is very easy to install. Once the booster has been connected to the pipework, it is simply a matter of putting the plug into a socket, and the system is operational.

Quiet Operation

The CME Booster operates quietly, at around 55 decibels, significantly quieter than most pumps currently available on the market.

User-friendly Interface

The user-friendly interface features LED indicators showing operational status and buttons for pressure adjustment.

Protective features

The CME Booster features dry run protection to automatically stop the pump if the water source runs out. The pump is also protected against any accidental overload by built-in thermal protection. These protective features help to ensure the longest life possible.
