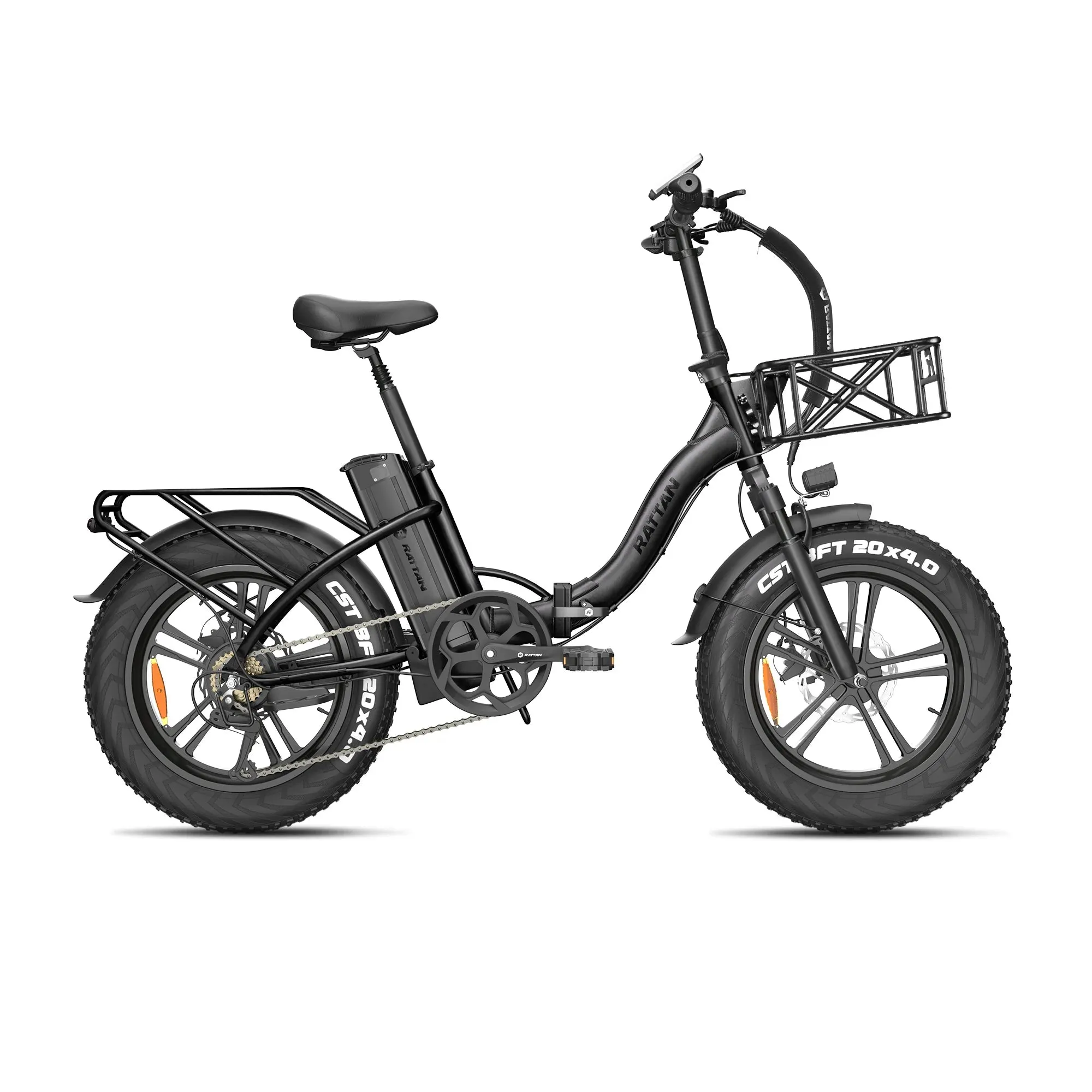

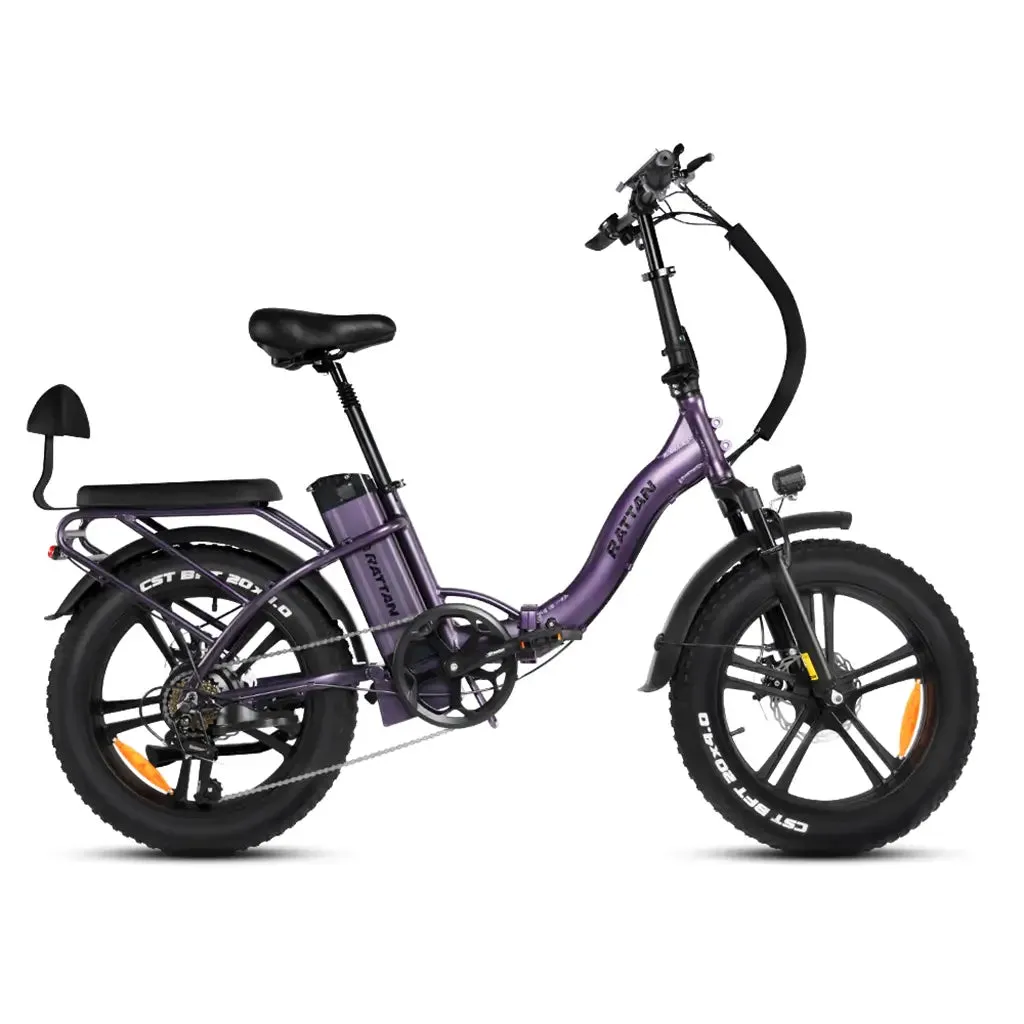

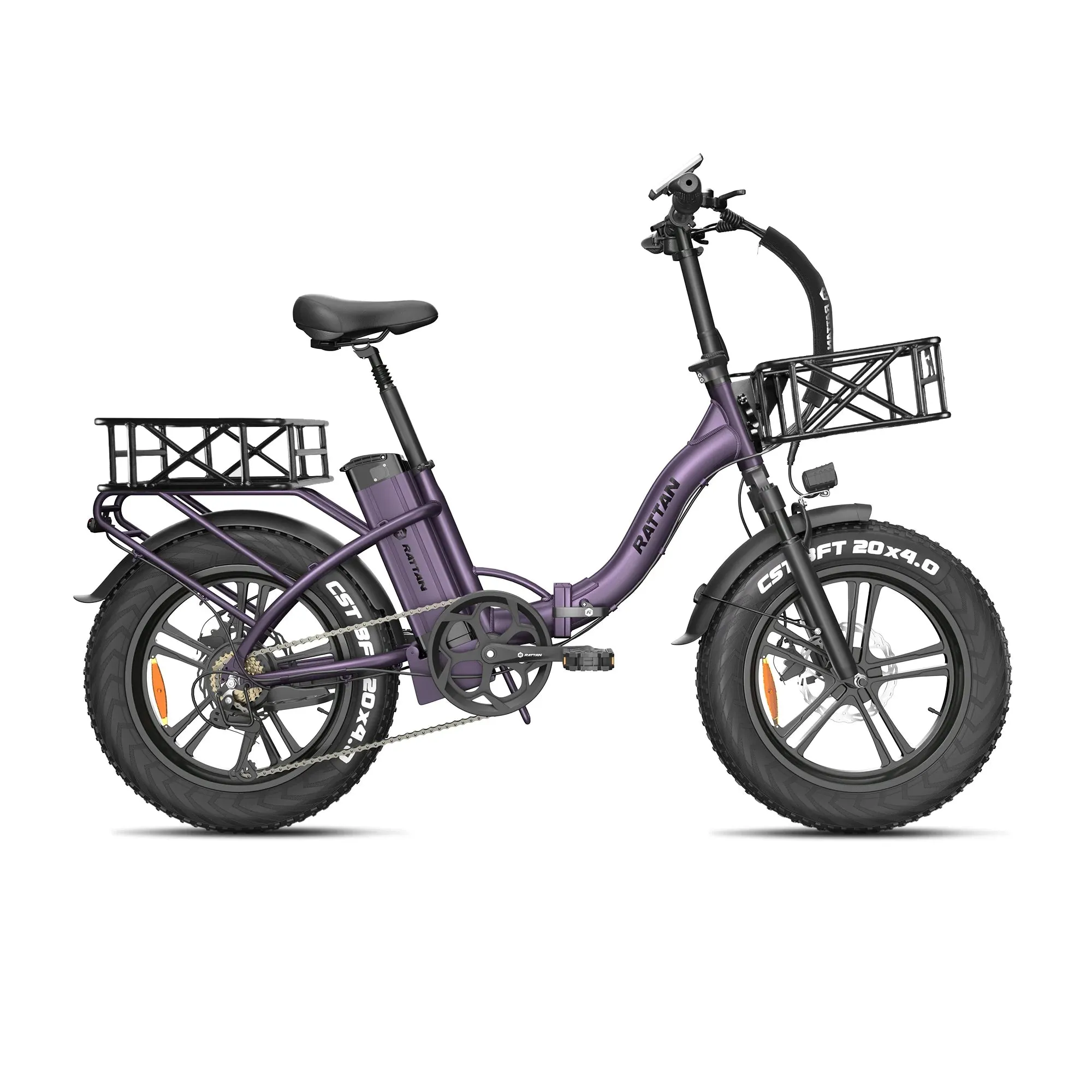

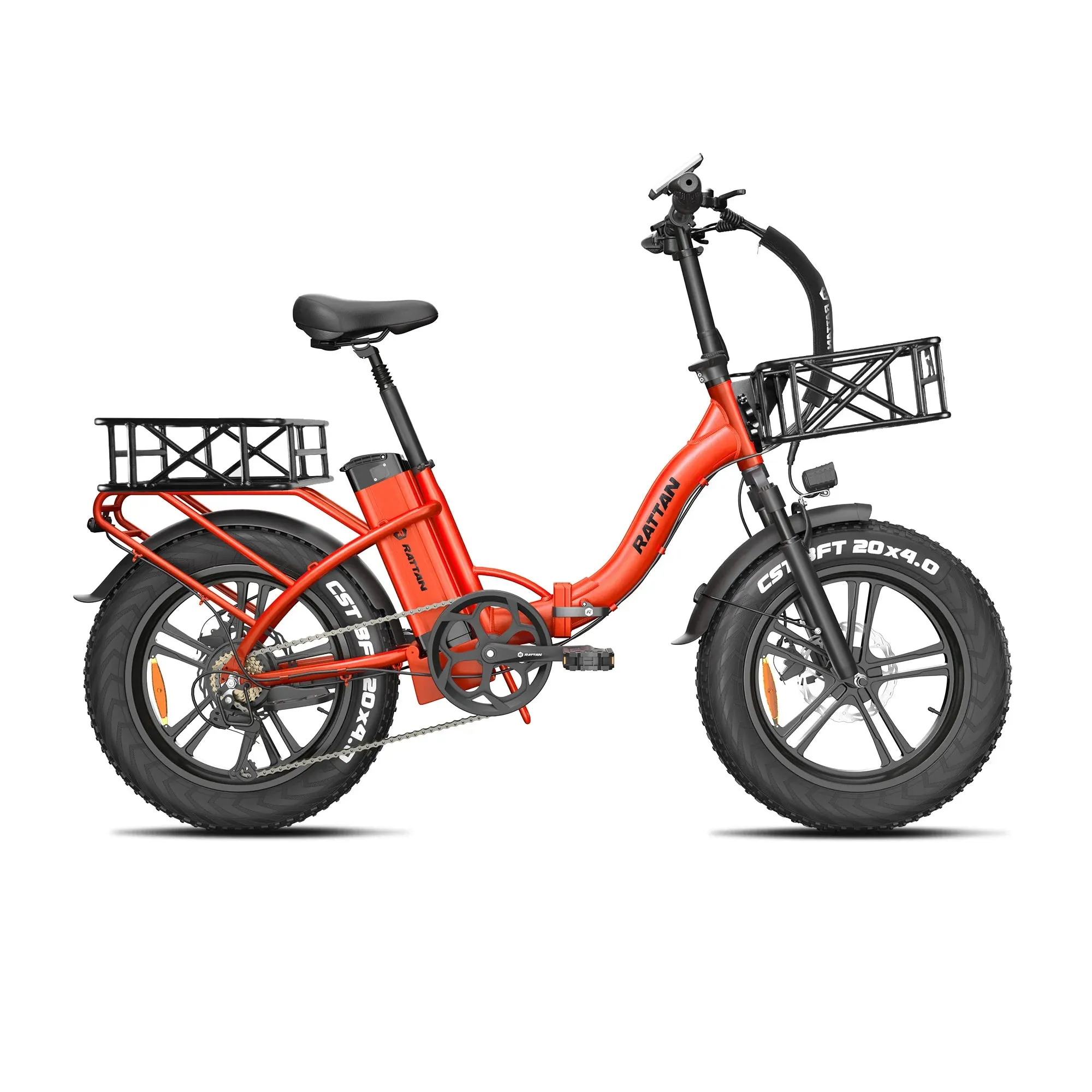

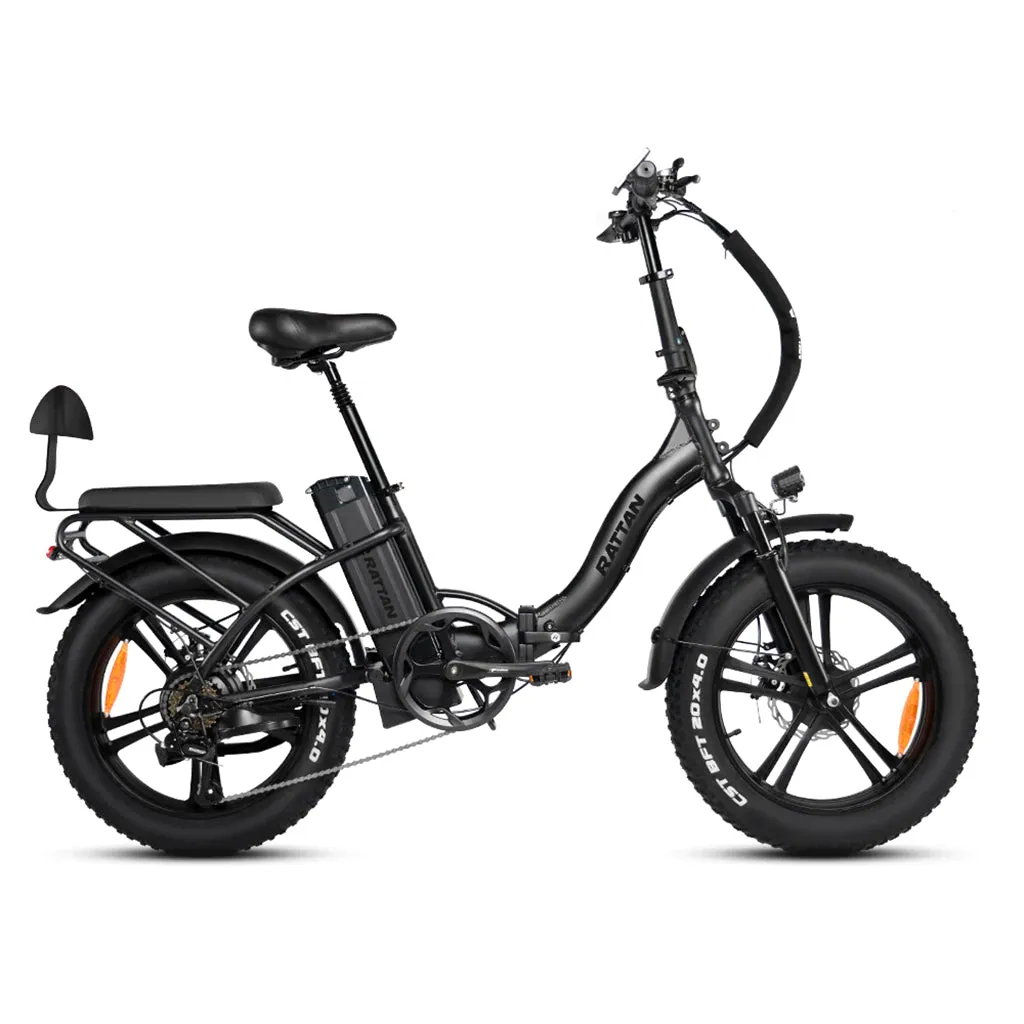

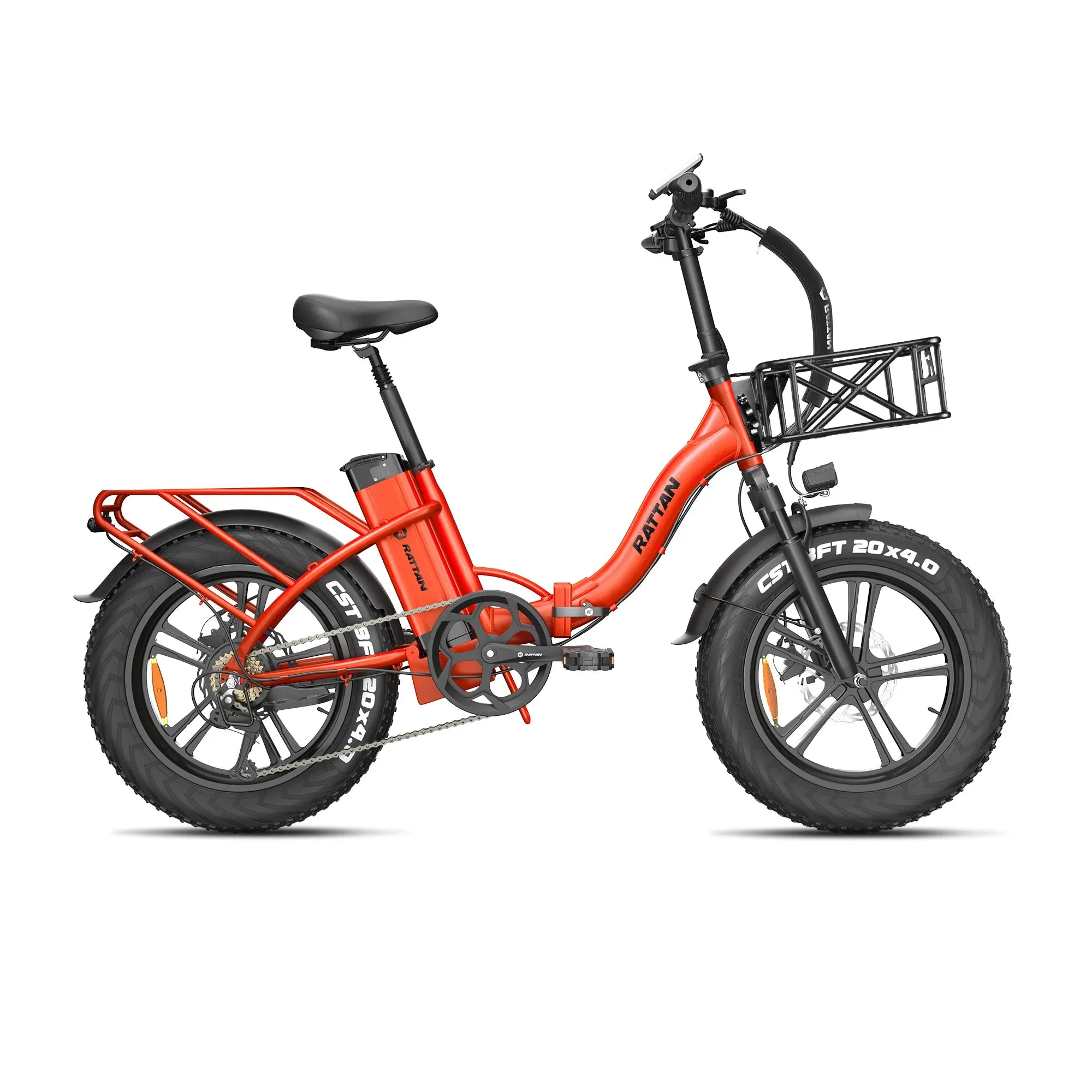

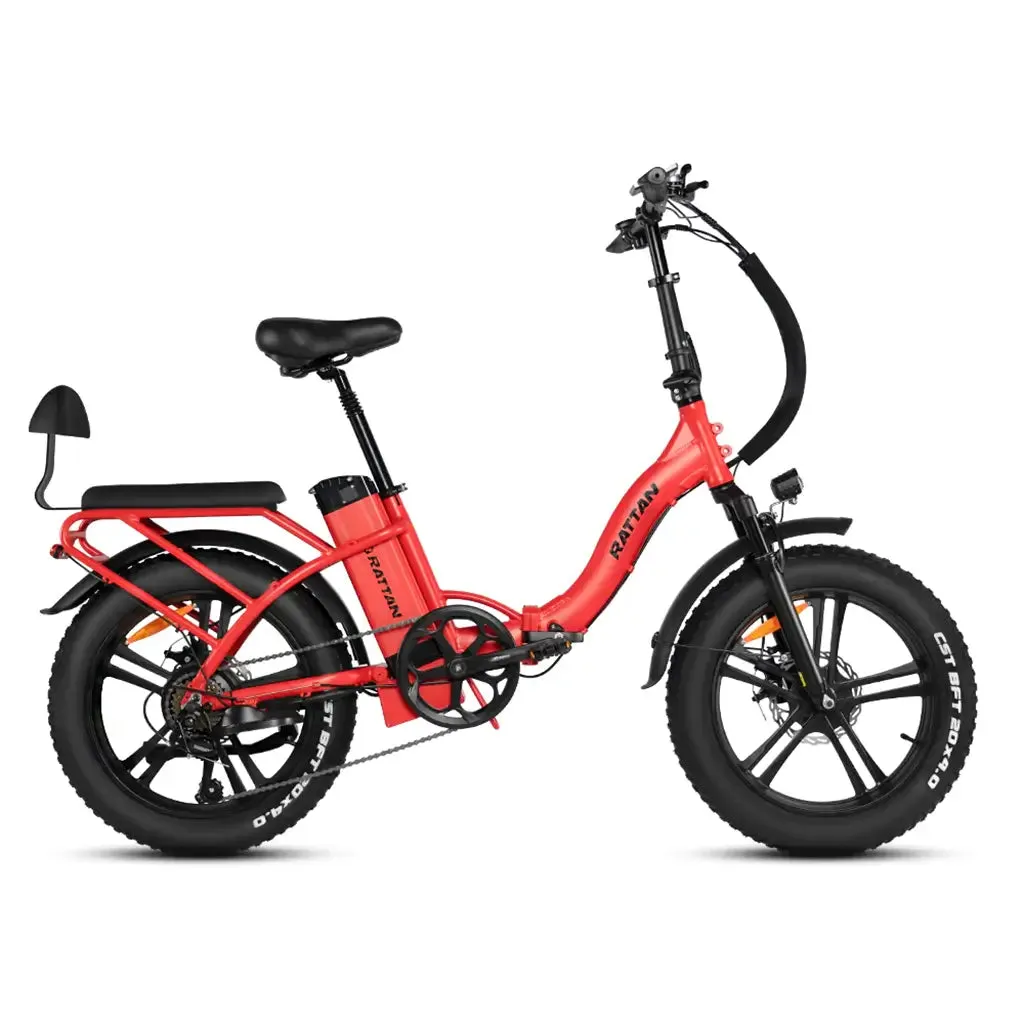

If you're looking for a high-end electric bike, this Rattan LF 750 Pro is the one for you. It's perfect for commuters, casual riders, or even professionals. It's also foldable and easy to store. Take it wherever you go with confidence!

With a foldable frame and a lightweight, but powerful 750w motor, you can take it with you everywhere! You'll be able to go as far as 55-mile average range on just one charge and pedal as fast as 25 kilometers/hour.

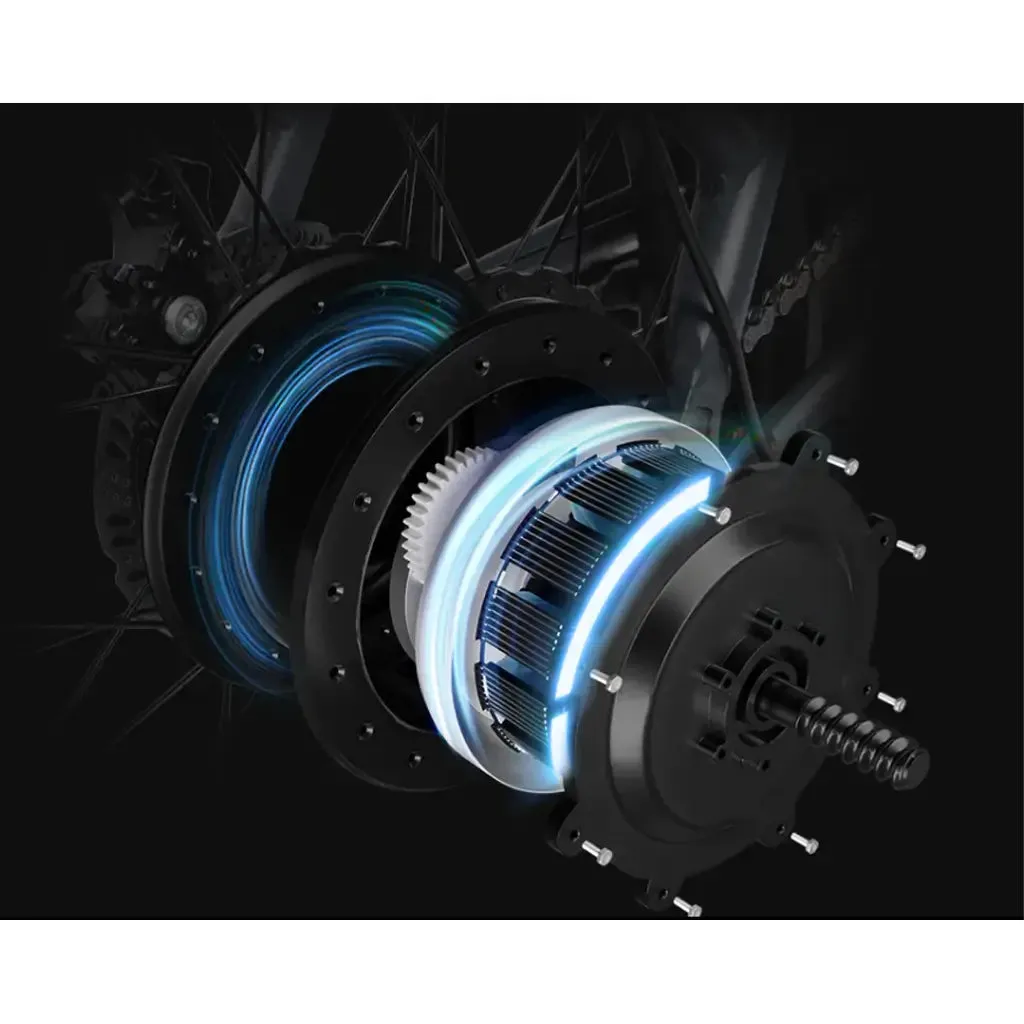

The 750W hub motor provides strong torque at a maximum speed of 28 miles/hour allowing you to ride the e-bike at ease. With 5:1 planetary gear reduction. Stated Wattage is the manufacturer's rated power capacity. Actual power-to-ground wattage is under 750W to ensure electric bike regulatory compliance and may vary depending on riding conditions.

A Battery Management System offers protection against Under and Overvoltage, Temperature Extremes, and Protection from Short Circuits. For the 48V 13Ah Lithium Battery, we have BMS longevity. BMS protects the battery cells from damage caused by being overcharged or over-discharged. If it detects any unsafe conditions, the BMS shuts the battery down to protect the Lithium-ion cells and the user. Above all, it keeps your batteries operating safely and optimally so you can get out there and stay out there with peace of mind.

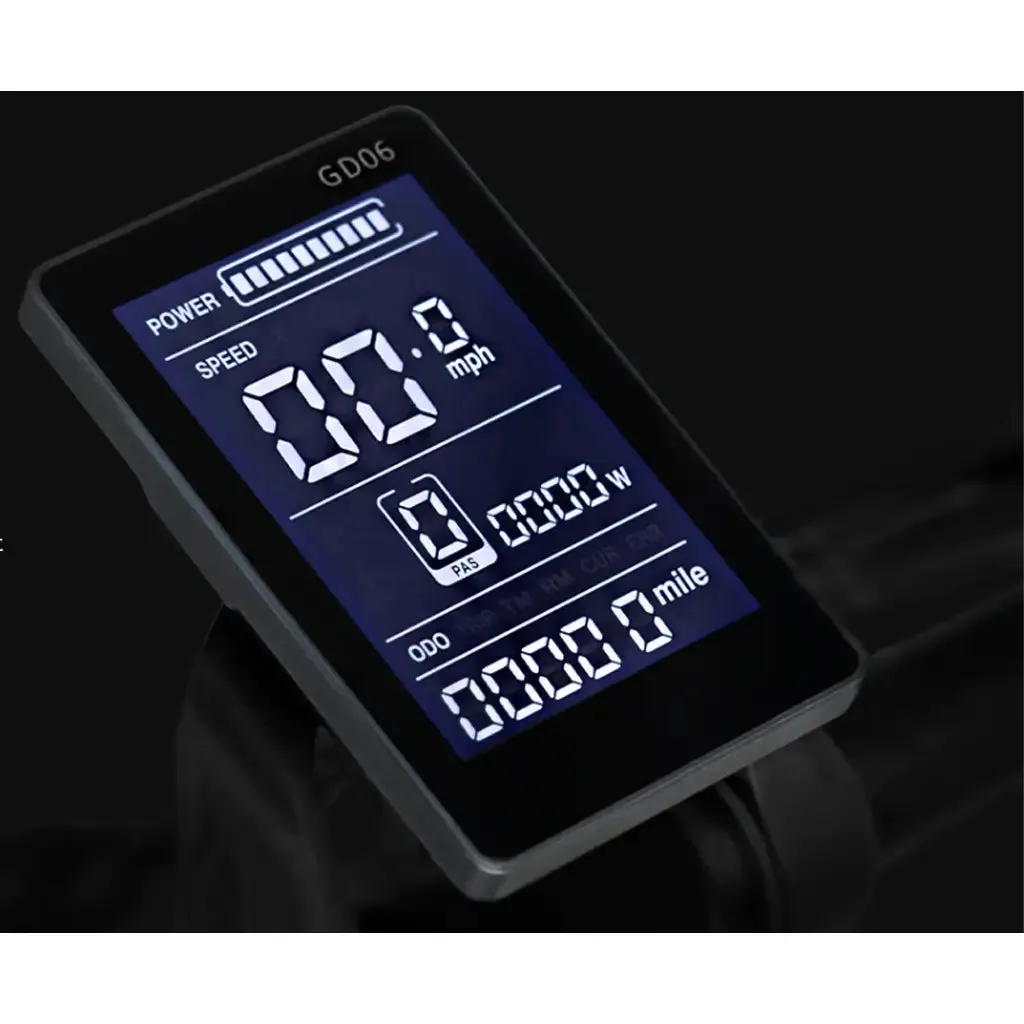

Rattan LF 750 pro has a custom GD06 display with an energy Indicator, pedal assist level for power adjustment / Speedometer for the current speed, Odometer for Mileage of the trip / Headlight / Walk mode, and more.

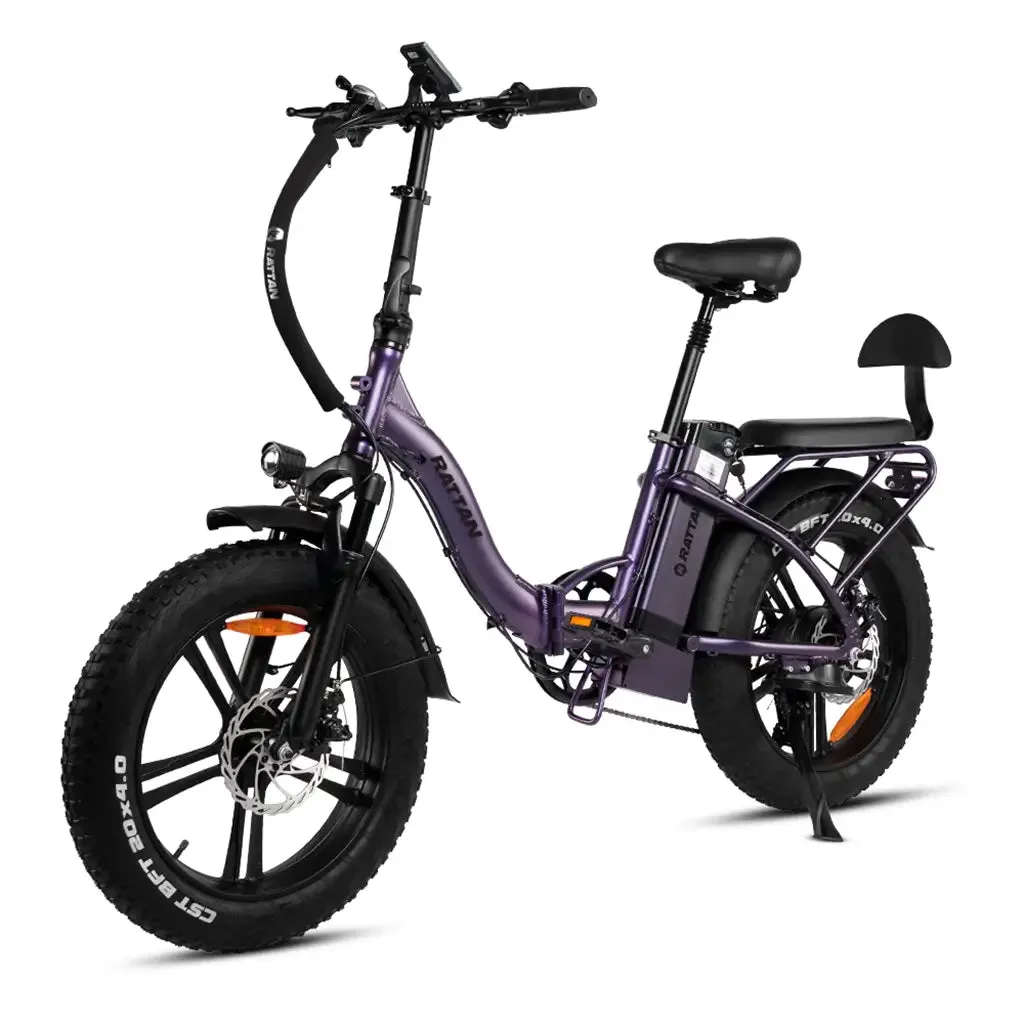

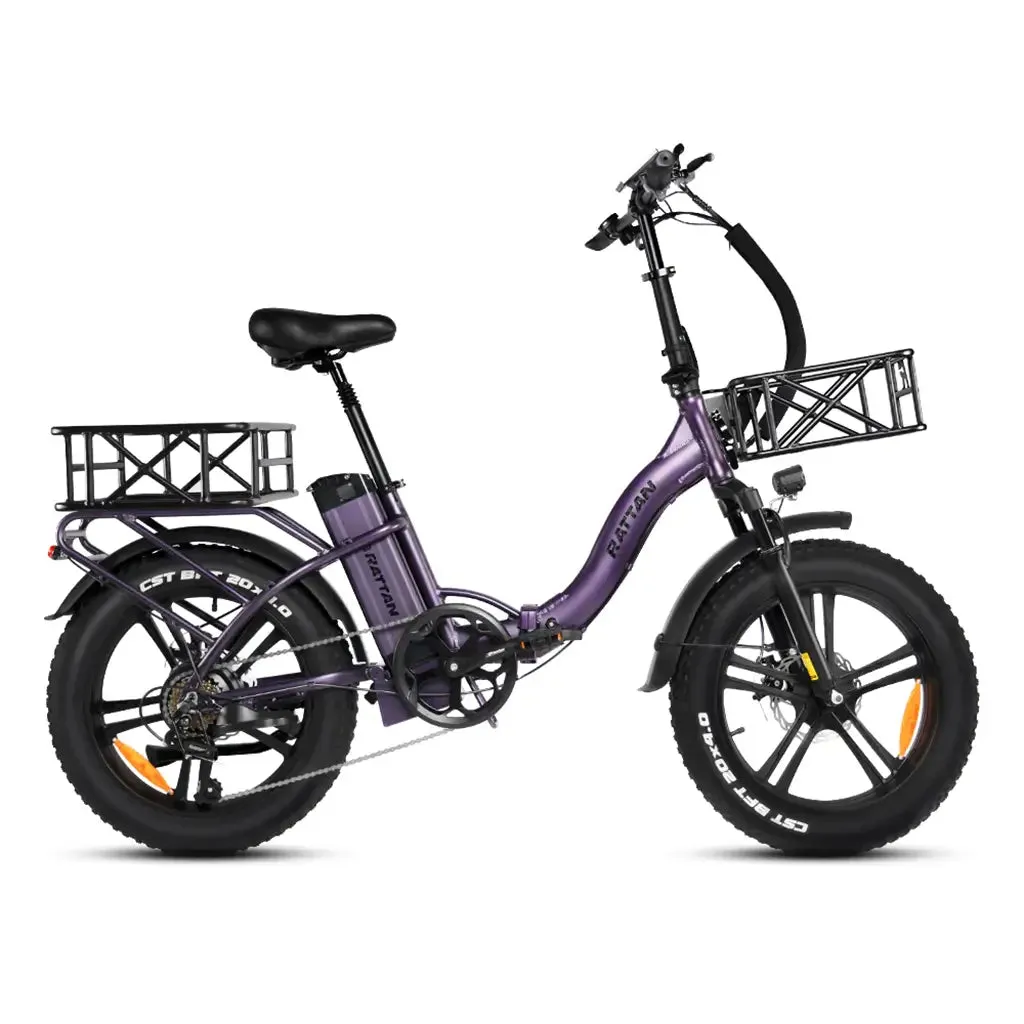

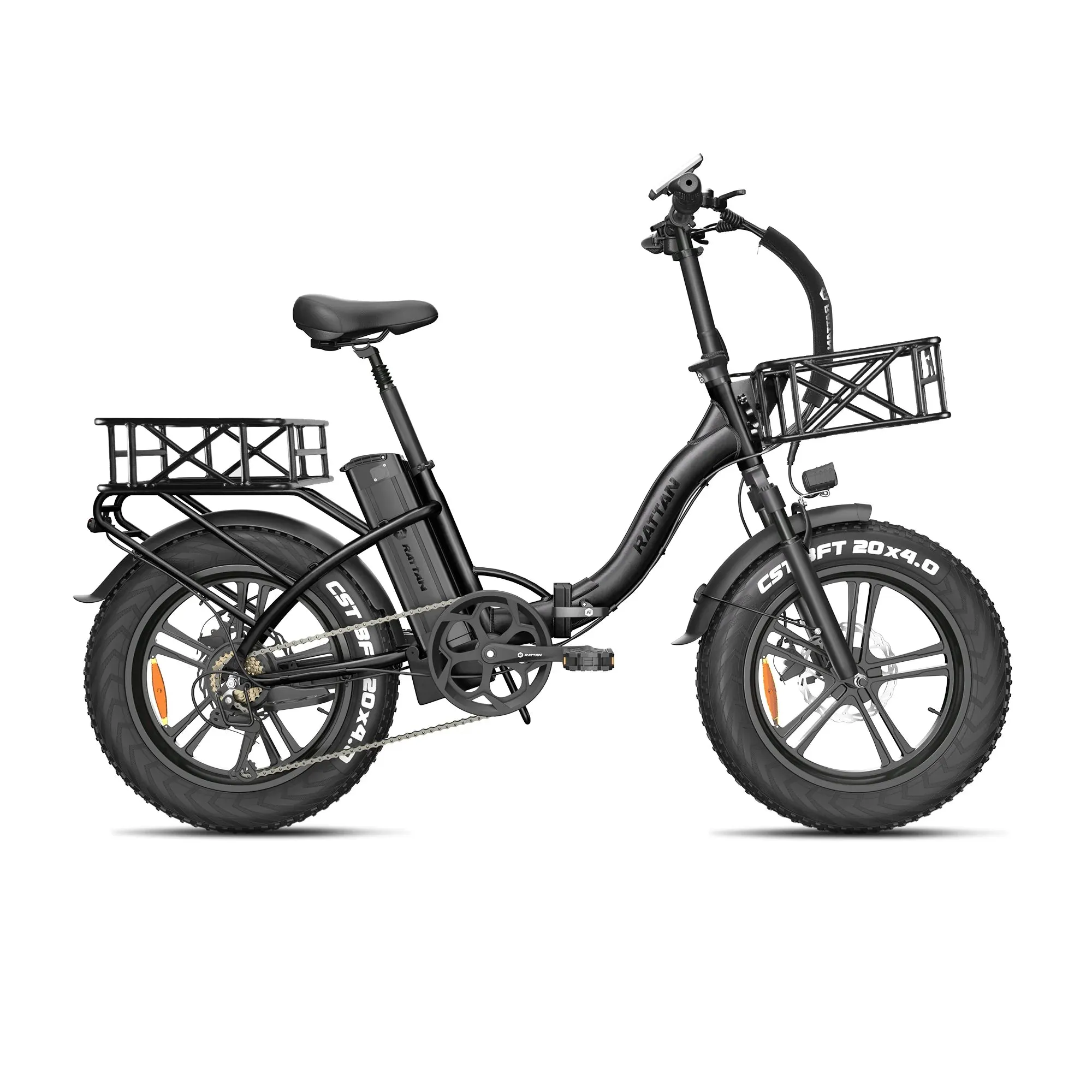

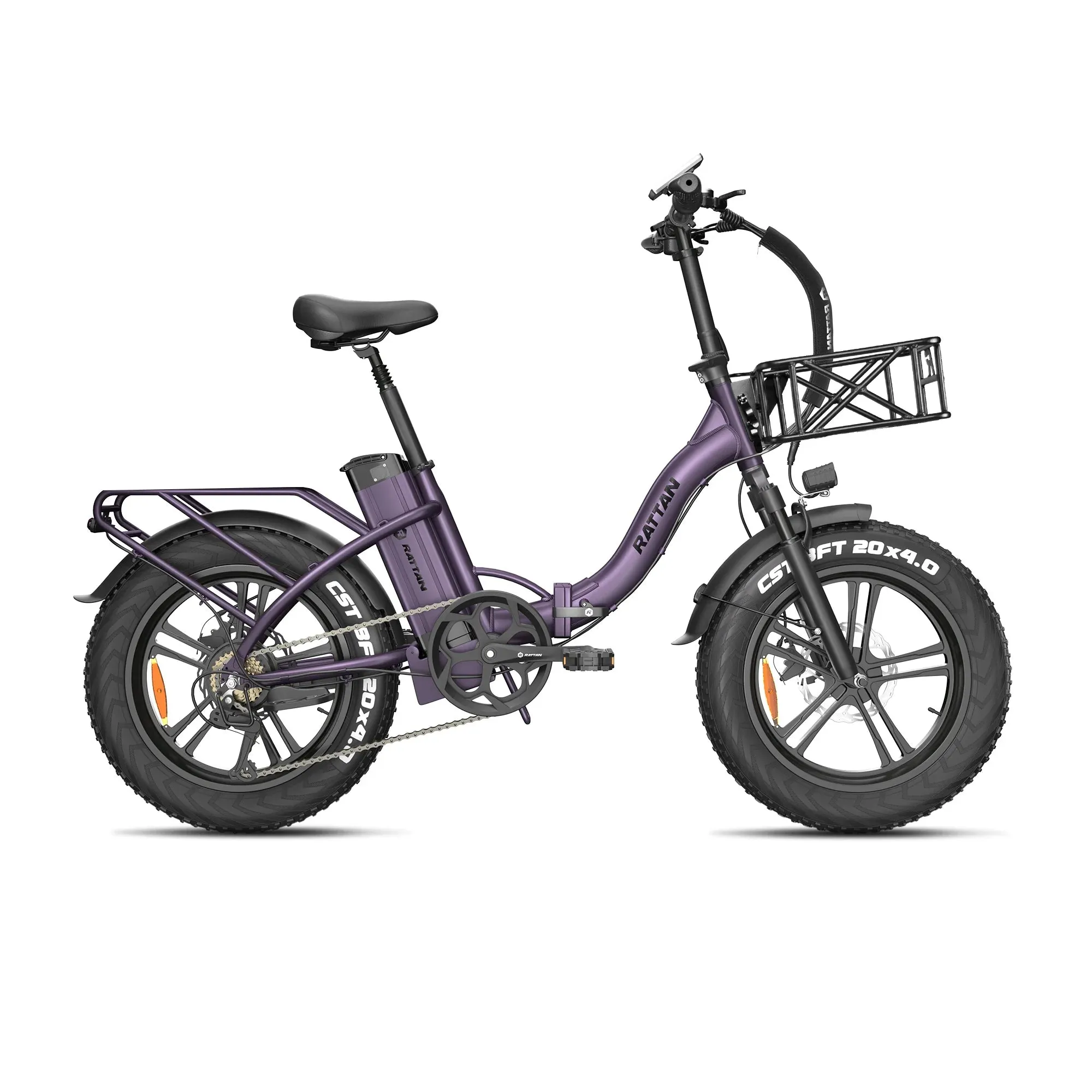

Rattan LF-750 Pro Step Through Fat Tire Folding Electric Bike Features:

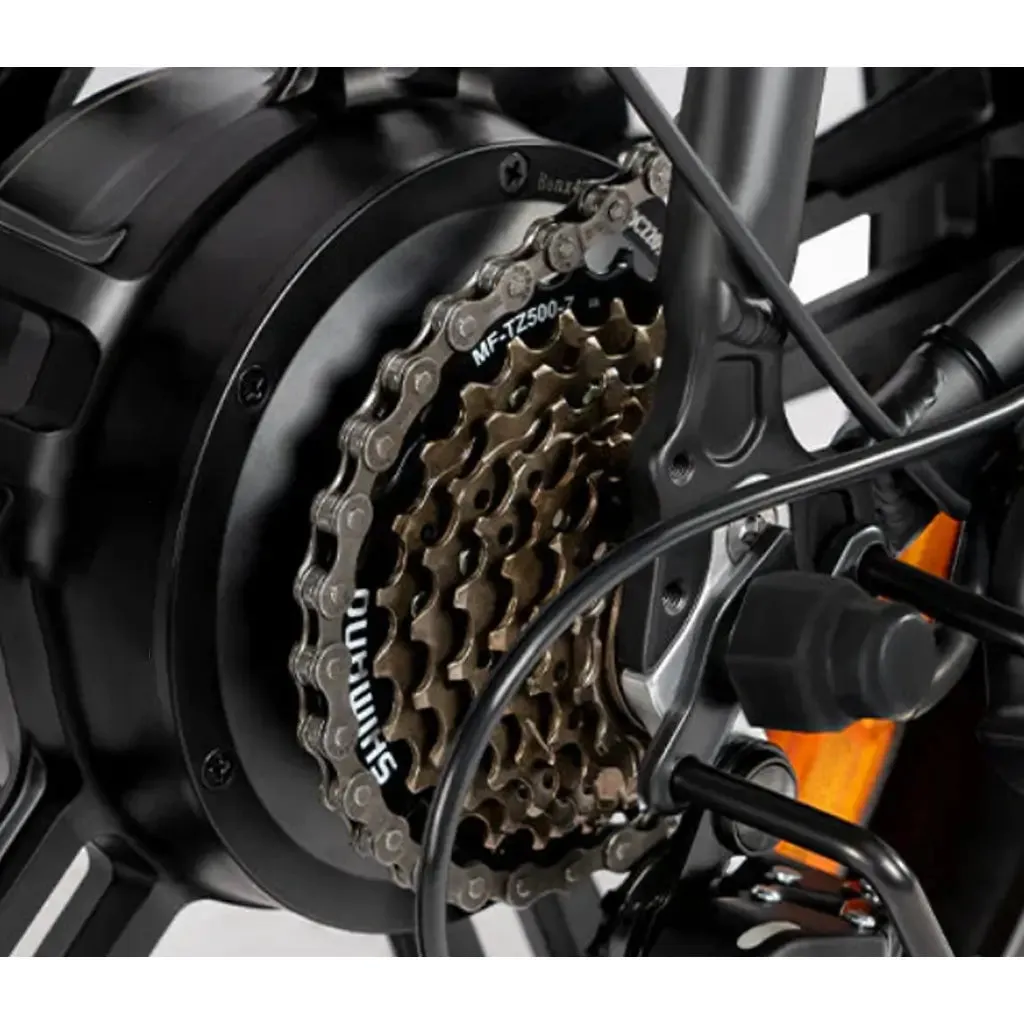

• Shimano 7-Speed Freewheel: The Shimano 7-Speed Freewheel means you can shift to a higher gear for uphill riding and downshift to a lower gear for high-speed riding. Combined with the pedal assist system, you can adjust the most suitable speed to complete your journey.

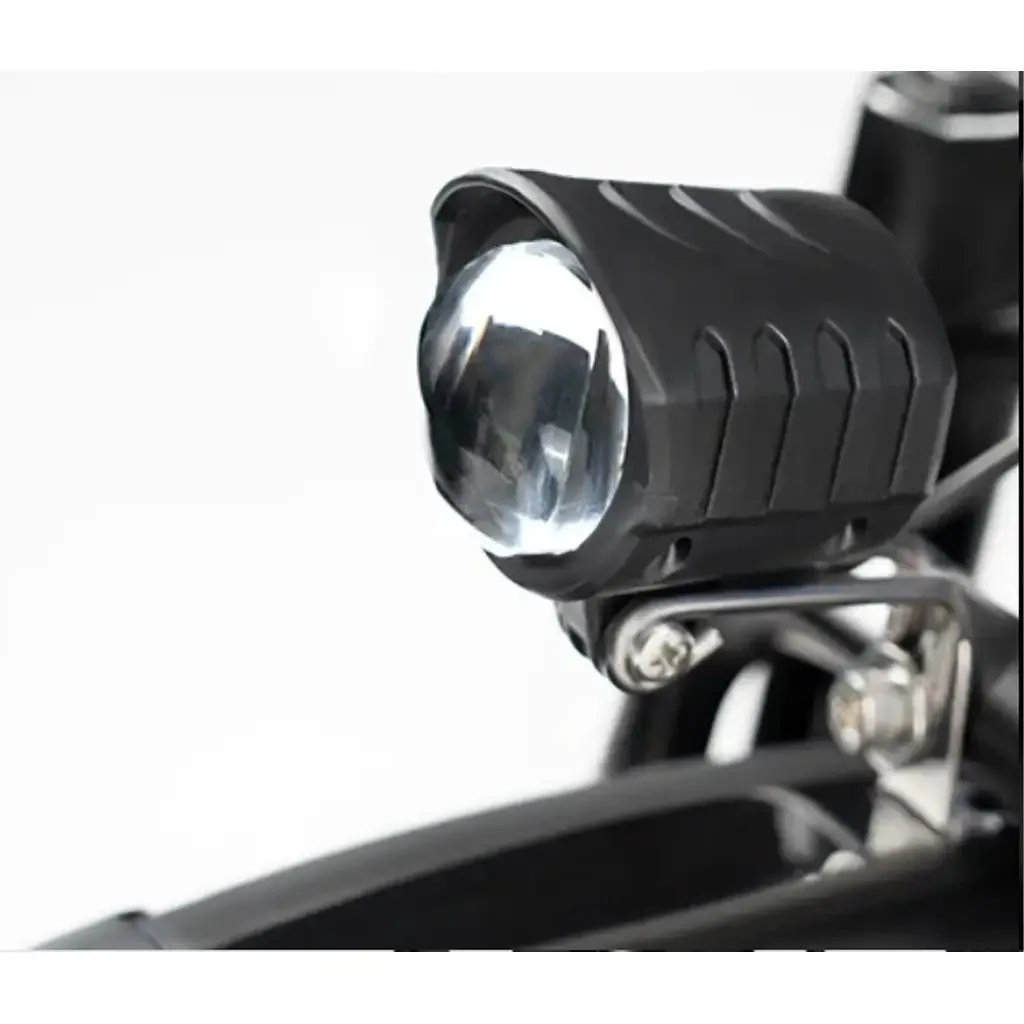

• LED Integrated Front Light: The front light could provide you with a safe and enjoyable night of riding.

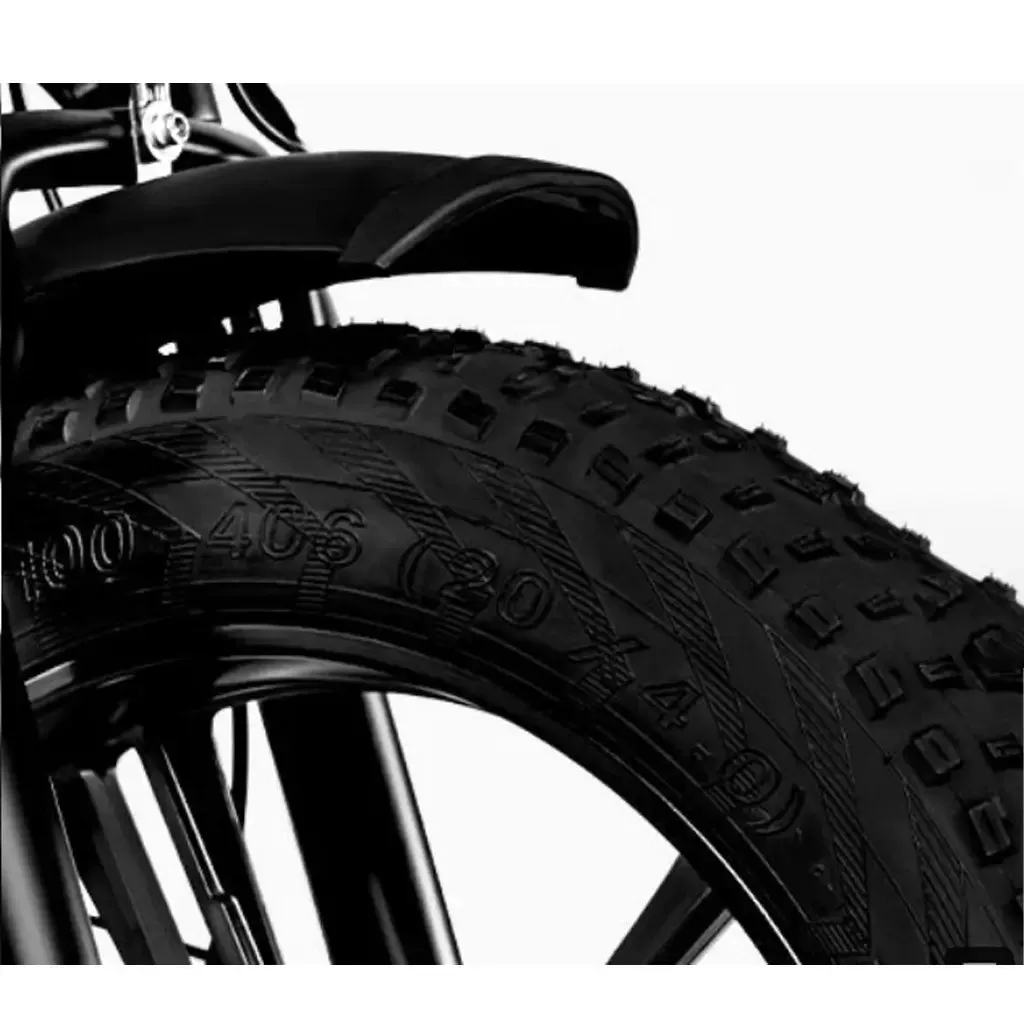

• Puncture Resisting 4.0 CSR Tires: Puncture resisting 4.0 CST Tires increase the contact area with the ground to make smooth and stable riding and provide you with a better travel experience.

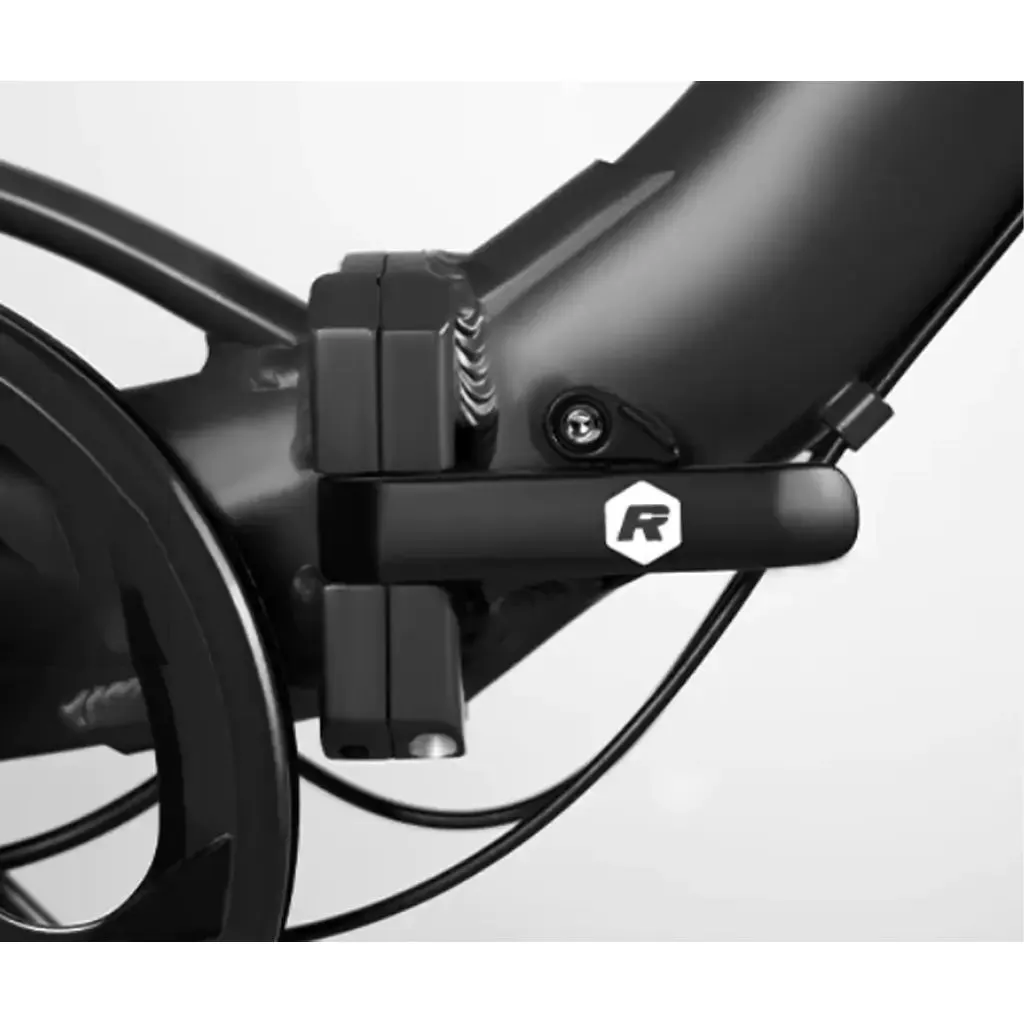

• Foldable Frame: LM/LF series electric bikes are foldable, easy to store, and travel. When traveling, it could also be the transportation tool next to the car.

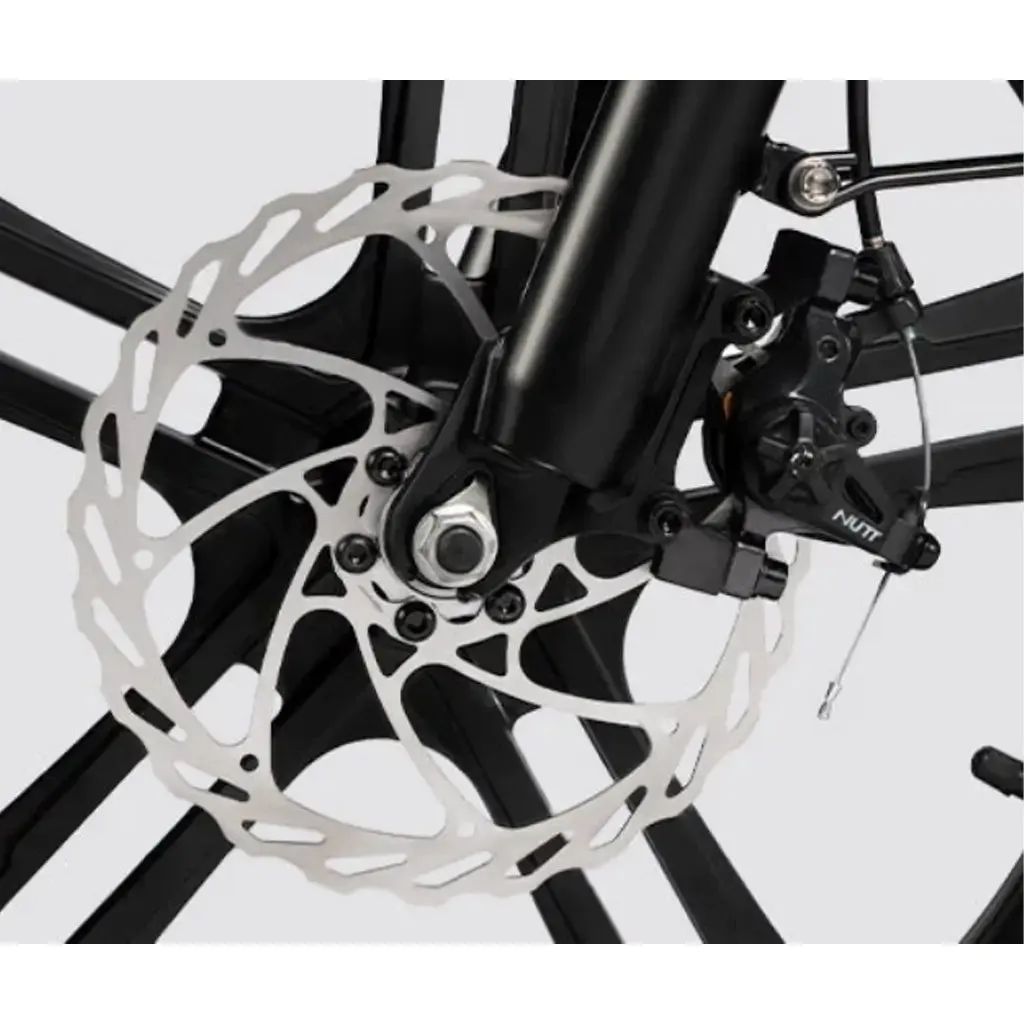

• 180mm Mechanical Disc Brakes: Nutt Bilateral Piston Brake calipers for more braking power and control.

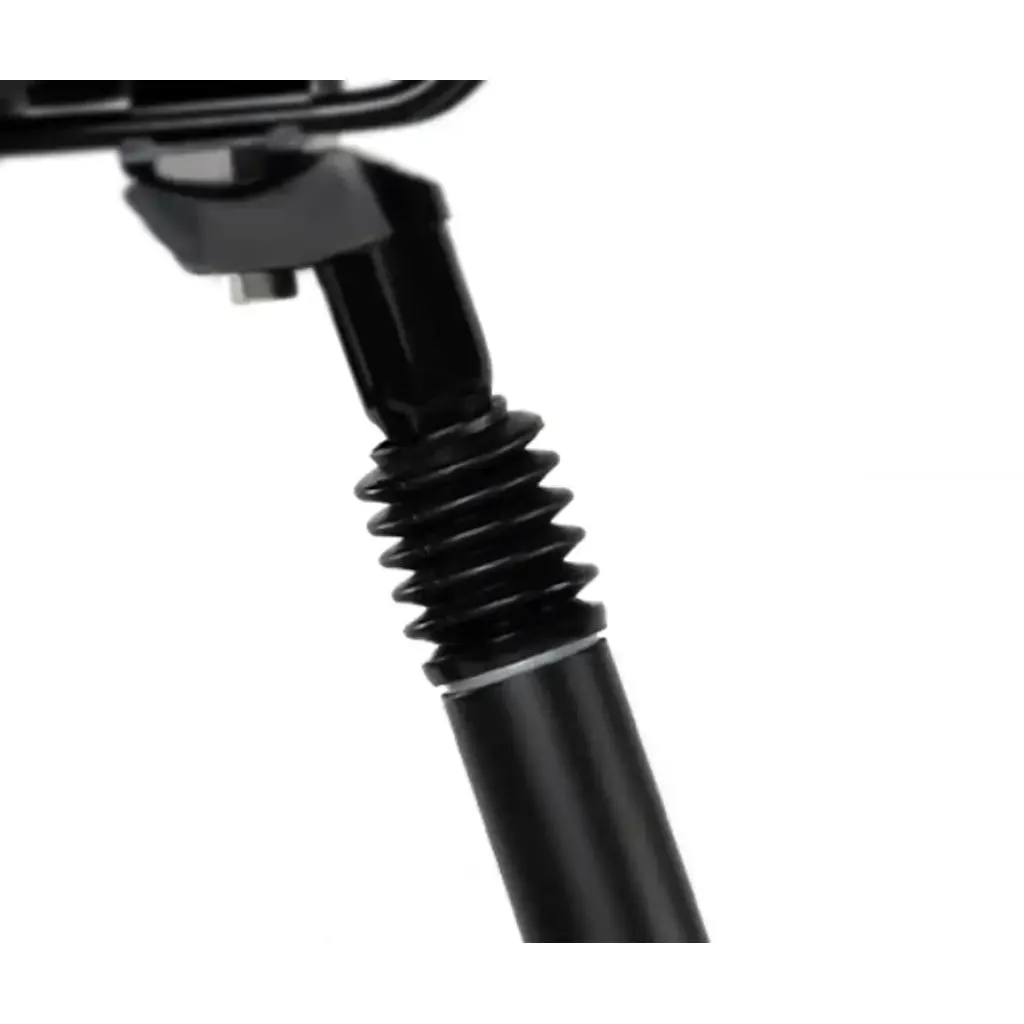

• Suspension Seat Post: Equipped with seat post Suspension, LF/LM Series E-bike directly reduces the feeling of the road to the rider.

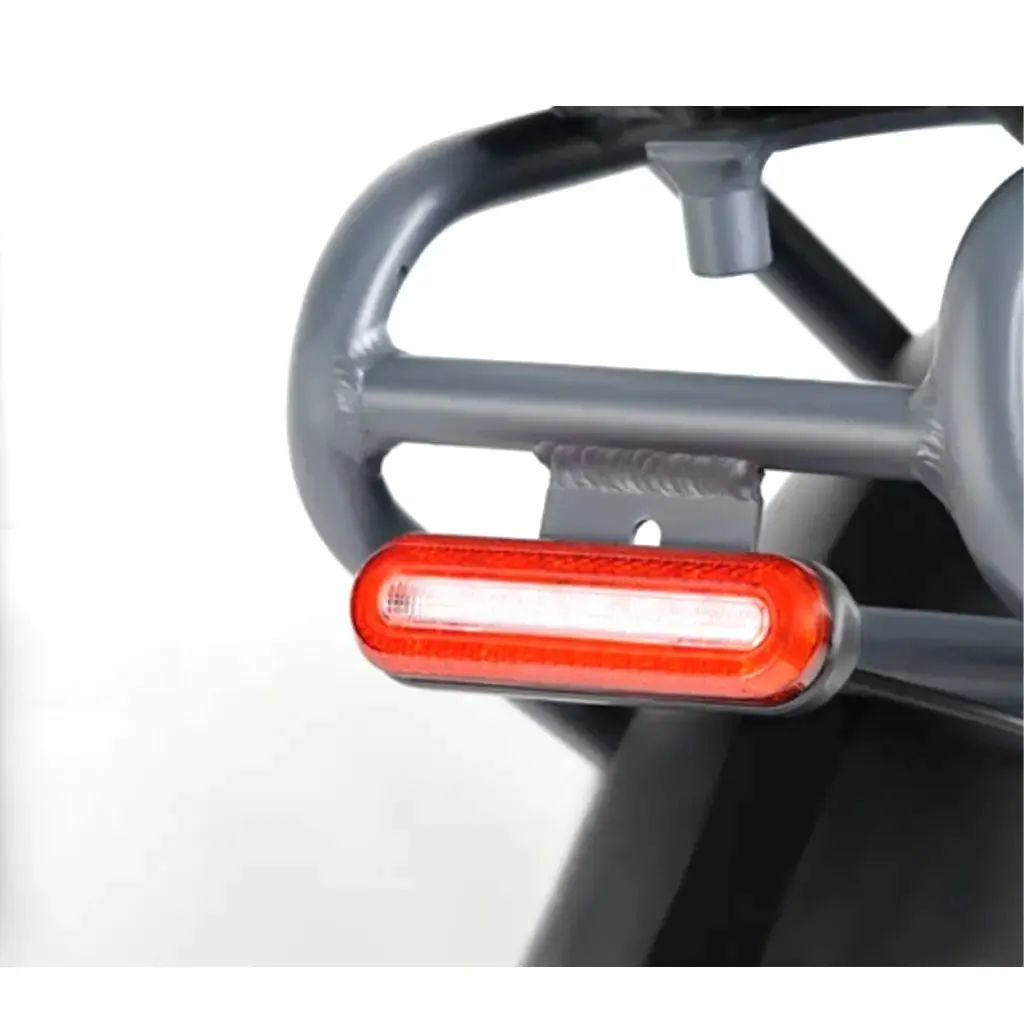

• Integrated Brake Light: The automatic brake light will be activated whenever you use the brake, which can prevent rear-end collisions while riding at night.

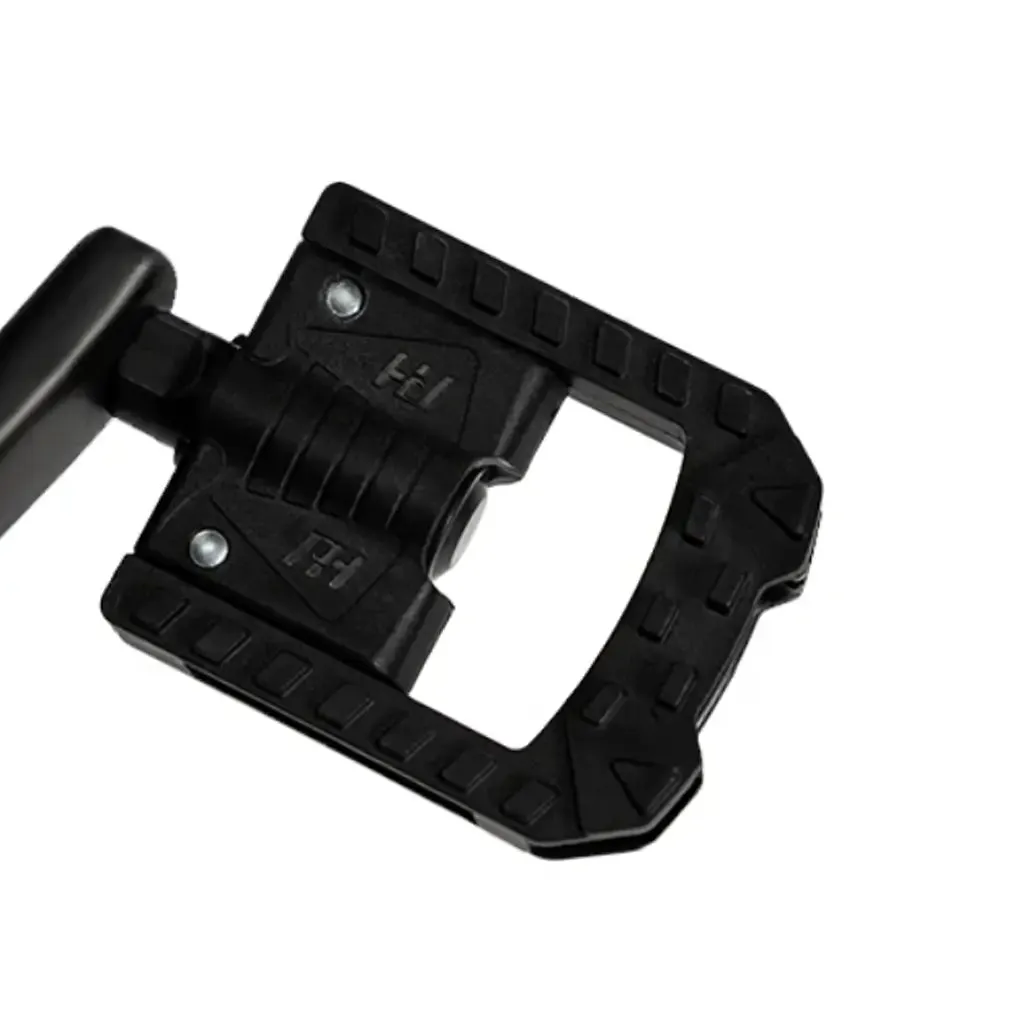

• Foldable Pedal: Save space when folded for storage.
• Half-twist Grip Throttle: Half-twist grip throttle prevents accidental activation, protecting you from accidental injuries.

• Buyer Protection: We have an expert support staff. Should you feel dissatisfied, check out our. and reach out to us for any assistance

Download Link:

•


  Rattan LF-750 Pro 750W 48V Step-Thru Fat Tire Folding Electric Bike Specifications

  Motor	750W 48V Brushless Rear Hub Motor, (1200W Peak)
  Throttle	Half-twist grip throttle
  Display	Rattan Ebikes custom GD06 display with Charge indicator, pedal assist level/error display, headlight /taillight indicator, and more
  Speed	55 miles average range, top speed 28 miles/hour
  Weight	64lbs 9.2lbs (battery)
  Battery	Removable Lithium-ion 48V, 13Ah (624Wh)
  Gearing	Shimano 7-speed gear shift system
  Pedal Assist	5 Levels Pedal Assist
  Charger	Included is a 48V 2 Amp Fast Charger, 4-5 Hour Charging
  Range	Up to 55 Miles Average
  Frame	6061 Single-Butted Aluminum Alloy
  Wire	25kg (without battery)
  Controller	Rattan sine wave controller controller,48V, 25A,750W
  Fork	Suspension Fork with 80mm travel, with lockout
  Weight Limit	Maximum Payload Capacity: 300 lbs
  Kickstand	Included, Rear Mount
  Bottom Bracket	Square Taper, Sealed
  Crankset	170mm w/ 52 T
  Wiring	Water-resistant connectors and wiring harness
  Tubes	Butyl Rubber, Schrader Valve
  Hubs	750W brushless geared hub motor, 5:1 planetary gear reduction. Stated wattage is the manufacturer’s rated power capacity. Actual power-to-ground wattage is under 750W to ensure e-bike regulatory compliance and may vary depending on riding conditions.
  Tires	CST, custom 20" x 4.0", e-bike rated with puncture-resistant liner *tires received may not include branding
  Saddle	Rattan by QS-8031
  Seat Post	Forged Alloy, 30.4mm x 350mm suspension seat post, 2-Bolt Clamp
  Foldable Stem	38.1mm length, 10° Rise
  Seat Clamp	Quick Release
  Handlebars	Aluminum 640*22.2* 25.4MM*2.2T
  Headset	VP Sealed Bearing Headset
  Grips	Ergonomic Comfort
  Pedals	9/16' foldable plastic
  Lights	Front: Rattan Electric bikes branded standard LED Rear: Integrated taillight with brake light indicator functionality
  Height Recommend	5'3- 6'4

  Note: Parts or components used on the bike may differ from what's listed. Rattan Ebikes tests all components for compatibility and quality.





  Rattan E-Bikes come with a manufacturer's warranty against manufacturing defects and workmanship. Please click on the link for the Rattan Warranty details.
