Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Display Colors | Green, Red |
| Display Type | Multi Line |
| Enclosure Rating | IP65 |
| Function | Temperature |
| Input Type | RTD, Thermocouple |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | 0°C |
| Mounting Type | Panel Mount |
| Number of Inputs | 1 |
| Number of Outputs | 2 |
| Output Type | Relay |
| Power Rating | 8 VA |
| Primary Type | Controller |
| Series | |
| Size | 49.5 x 49.5 mm |
| Special Features | EEPROM |
| Supply Voltage | 85-250 VAC |
| Temperature Operating Range | 0 to 50°C |
| Temperature, Ambient | 0° to 50°C |

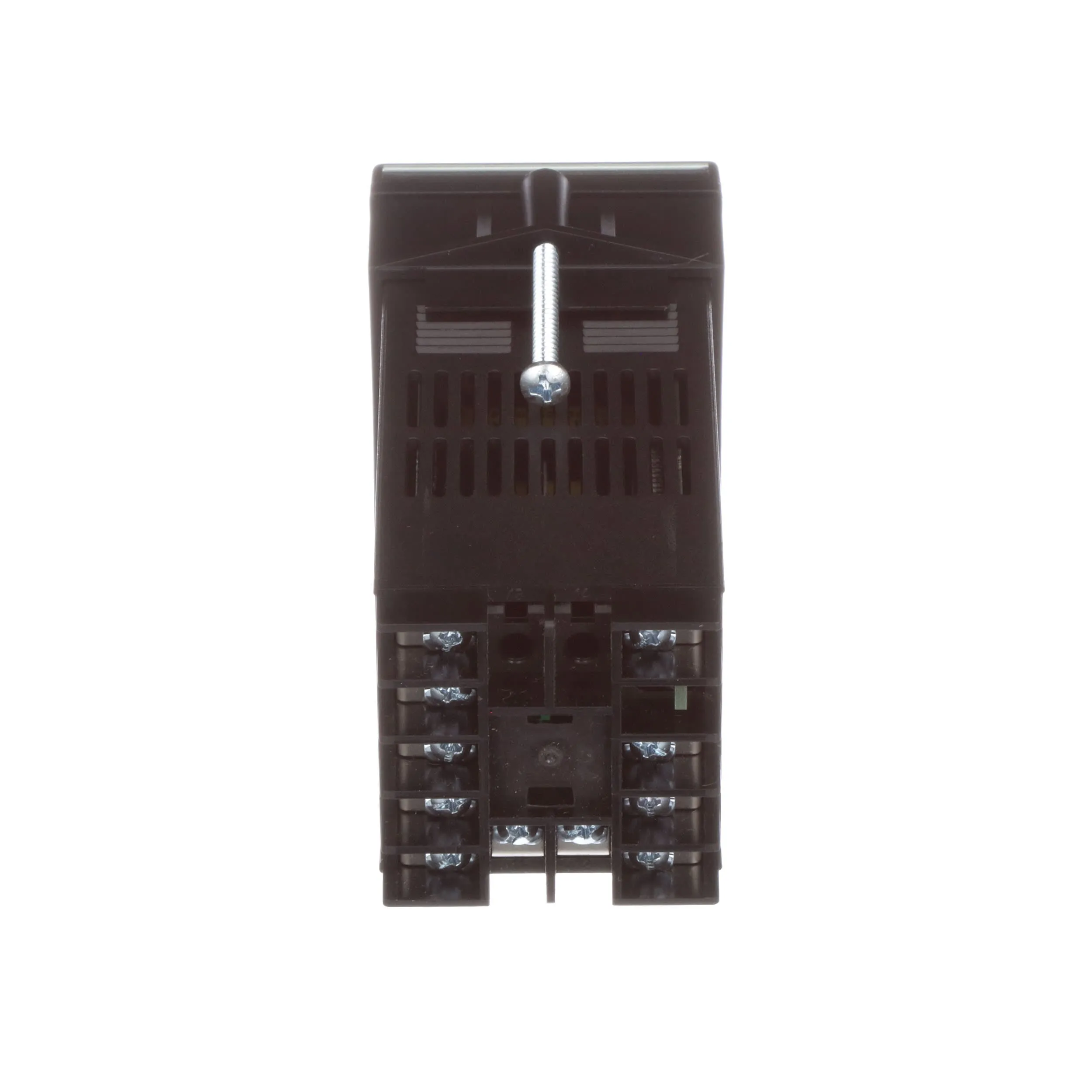

| Termination | Screw |
| Type | PID Temperature Controller |
| Voltage Rating | 120/240 VAC |
Overview

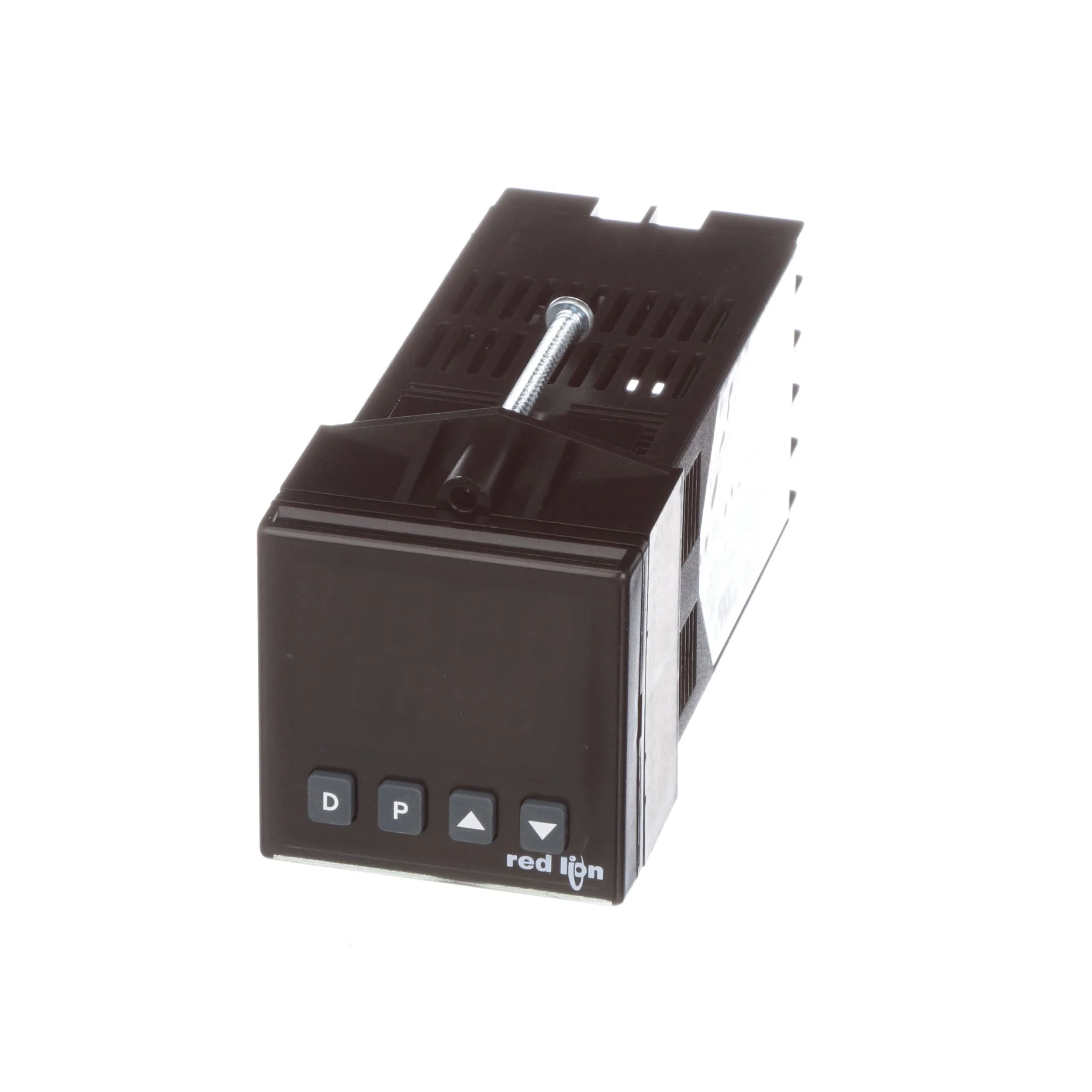

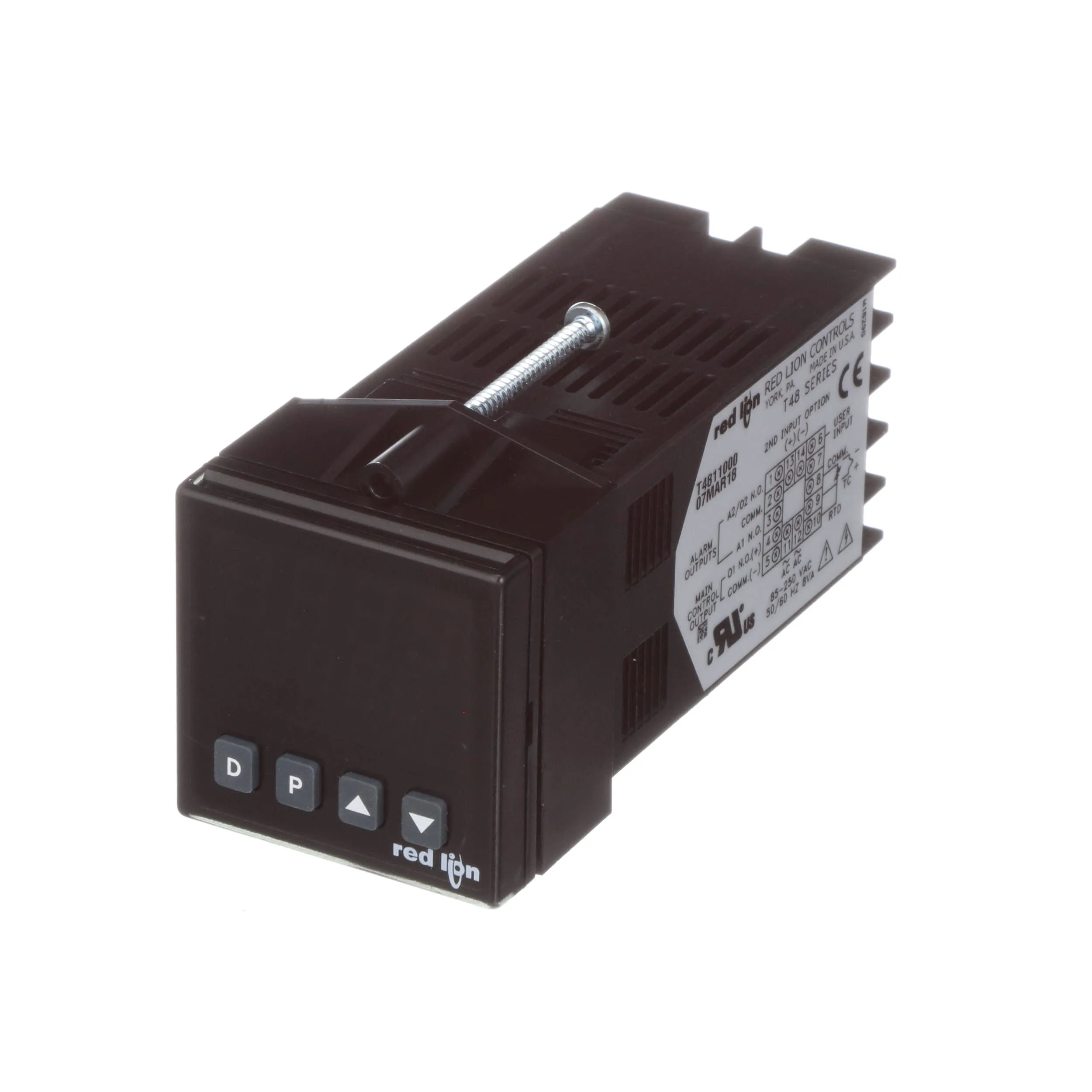

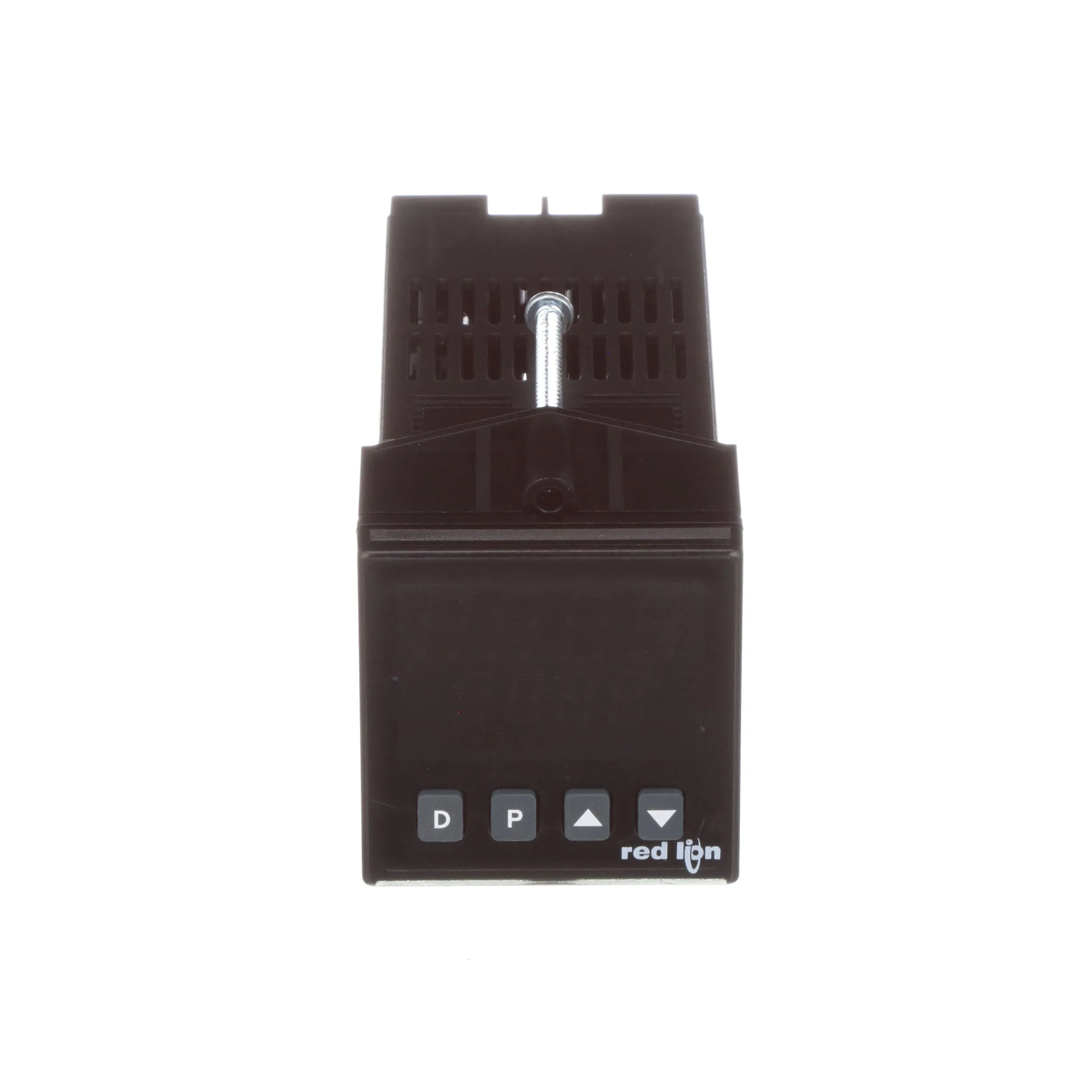

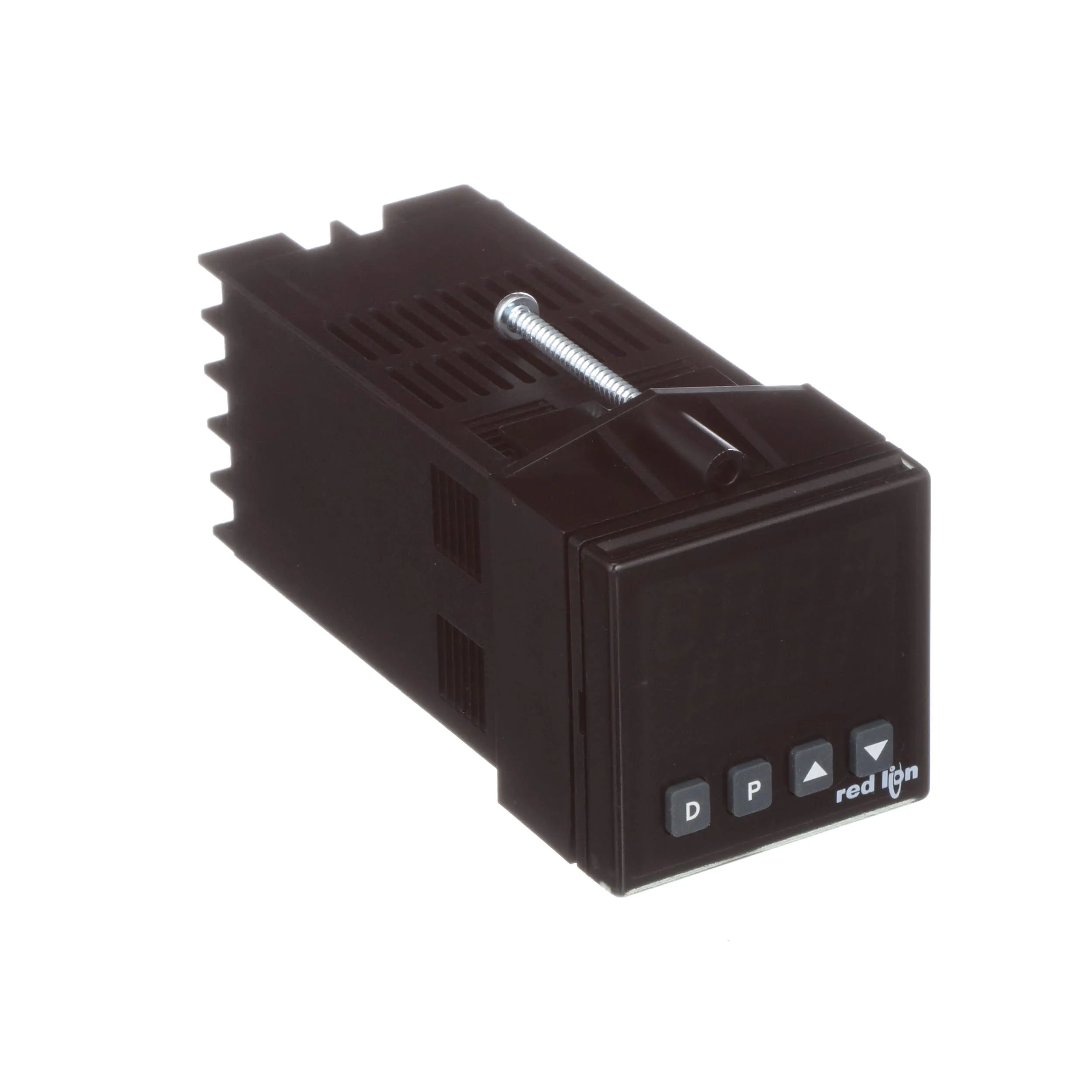

The Red Lion model T48 Controller accepts signals from a variety of temperature sensors (thermocouple or RTD), precisely displays the process temperature, and can provide an accurate output control signal (time proportional or DC Analog Output) to maintain a process at a desired temperature. Dual 4-digit displays allow viewing of the temperature and setpoint simultaneously while front panel indicators inform the operator of the controller and output status. On many models, the main control output and the alarm options are field replaceable. The controller's comprehensive yet simple programming allows it to meet a wide variety of application requirements. Features:
